Paddy Intake & Cleaning
Raw Paddy→Intake + Pre-cleaner→Pre-cleaned Paddy
Raw paddy enters the plant through the intake and conveying system, then passes through pre-cleaning to remove dust and large impurities.
Plant Solution
Complete Rice Mill Plant
Turnkey Complete Rice Mill Plants: Scalable Solutions from 20 to 1000 TPD. Engineered for commercial rice processing projects, our complete plants cover the entire workflow. Whether you are building a compact regional facility or a large export-oriented milling hub, we provide the layout, equipment, and technical support to drive your business forward.
Product ViewComplete Rice Mill Plant
View Process →Interactive Process Explorer

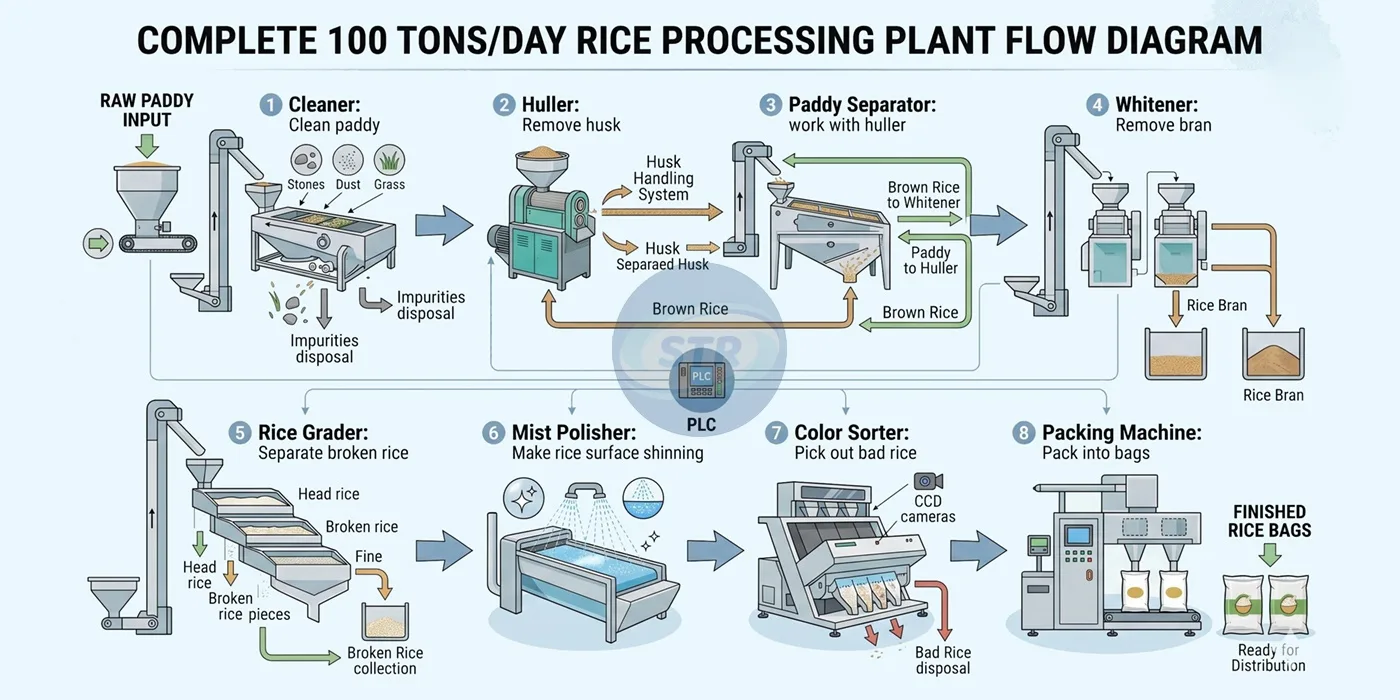

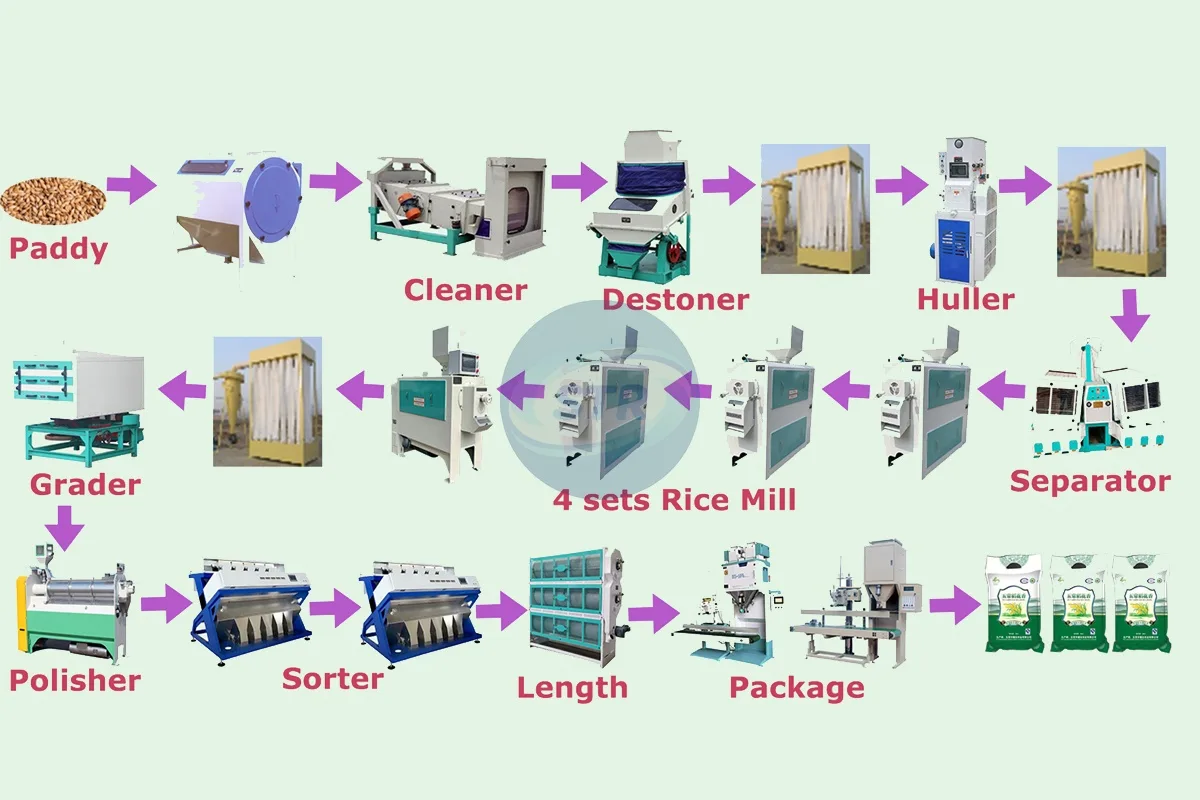

From Paddy to Finished Rice
Follow the commercial rice milling workflow from paddy intake and cleaning to husking, separation, whitening, polishing, grading, optional color sorting and finished rice packing.
De-stoning & Fine Cleaning
Pre-cleaned Paddy→Cleaner / De-stoner→Clean Paddy
Fine cleaning and de-stoning remove stones, light impurities and heavy particles to protect downstream huskers, whiteners and polishing equipment.
Husking & Paddy Separation
Clean Paddy→Husker + Paddy Separator→Brown Rice / Return Paddy
The husker removes the husk, and the paddy separator returns unhusked paddy while sending brown rice to the whitening section.
Whitening & Polishing
Brown Rice→Whitener / Polisher→Polished White Rice
Whitening removes the bran layer, while polishing can improve surface smoothness and appearance according to the required finished rice grade.
Grading & Color Sorting
White Rice→Grader + Color Sorter→Sorted Finished Rice
Grading separates rice by size, and color sorting can remove discolored grains or defects when required for higher-value finished rice.
Weighing & Packing
Finished Rice→Weighing / Packing Machine→Bagged Rice
Finished rice can be weighed, filled, sealed and prepared for warehouse storage, distribution or direct commercial sale.
Product Application
Application in Complete Rice Mill Plants
Comprehensive Milling Workflow: A fully integrated system encompassing paddy intake, cleaning, husking, separation, whitening, grading, and optional color sorting and packing. Suitable for commercial rice processors who need a complete engineering package where capacity, automation level, and workshop layout are professionally aligned.
Core FunctionComplete commercial rice processing line for turning raw paddy into marketable white rice.
Buyer ValueConfigured for commercial and industrial projects, the line can combine receiving, cleaning, destoning, husking, separation, whitening, polishing, grading, color sorting, packing and conveying as required.
Line CoverageCovers the complete route from paddy receiving and cleaning to destoning, husking, paddy separation, whitening, polishing, grading, color sorting, weighing, packing and material conveying, depending on the project plan.
Key Features
Configured as a Complete Processing Line
A complete plant is not one fixed machine; it is a matched system from raw paddy intake to finished rice packing.
Full Process Coverage
Covers paddy cleaning, destoning, husking, separation, whitening, polishing, grading, color sorting and packing when required.
Project-Based Design
Equipment quantity, capacity, elevators, dust collection and control layout are adjusted to the customer’s plant conditions.
Quality-Oriented Configuration
Polishing, grading, color sorting and packing sections can be strengthened for higher finished rice presentation.
Working Principle
How It Works in the Process
Paddy passes through cleaning, destoning, husking, paddy separation, whitening, polishing, grading, color sorting and packing. Each machine handles a specific step and transfers material continuously through elevators and conveyors.
Paddy Intake
Raw paddy enters through receiving, conveying and pre-cleaning sections.
Core Milling
Cleaned paddy is husked, separated, whitened and polished according to the plant layout.
Quality Control
Grading and optional color sorting improve finished rice consistency and market grade.
Packing Output
Finished rice is sent to weighing, packing, storage or distribution.
Technical Specifications
Technical Specifications
Select the complete rice mill plant range according to daily output, automation level, finished rice quality target and site layout. The figures below are planning ranges; final equipment matching is confirmed after layout and raw material review.
| Plant Scale | Target Capacity | Typical Configuration | Best Use |
|---|---|---|---|
| MCHJ20–80 | 20–80 TPD | Cleaning, de-stoning, husking, paddy separation, whitening, grading, optional polishing, color sorting and packing | Regional rice mills and first complete commercial projects |
| MCHJ100–200 | 100–200 TPD | More complete conveying, whitening, polishing, grading, color sorting, packing and dust/bran collection | Commercial processors serving larger local markets |
| MCHJ250–500 | 250–500 TPD | Multi-machine continuous flow with stronger quality control, automatic transfer and project layout coordination | Large rice processors and grain warehouses |
| MCHJ1000 | 1000 TPD project scale | Turnkey engineered line with full process integration, storage support, packing planning and control-system coordination | Industrial and export-oriented rice processing projects |
Plant Planning Guide
How to Plan a Complete Rice Mill Plant
MCHJ20–80Compact and modular complete rice mill plants for regional processors, small commercial mills and first turnkey projects.
MCHJ100–200Commercial plant configurations for larger markets, with stronger whitening, polishing, grading, color sorting and packing options.
MCHJ250–1000Industrial rice milling plants for large grain processors, grain warehouses and export-oriented turnkey operations.

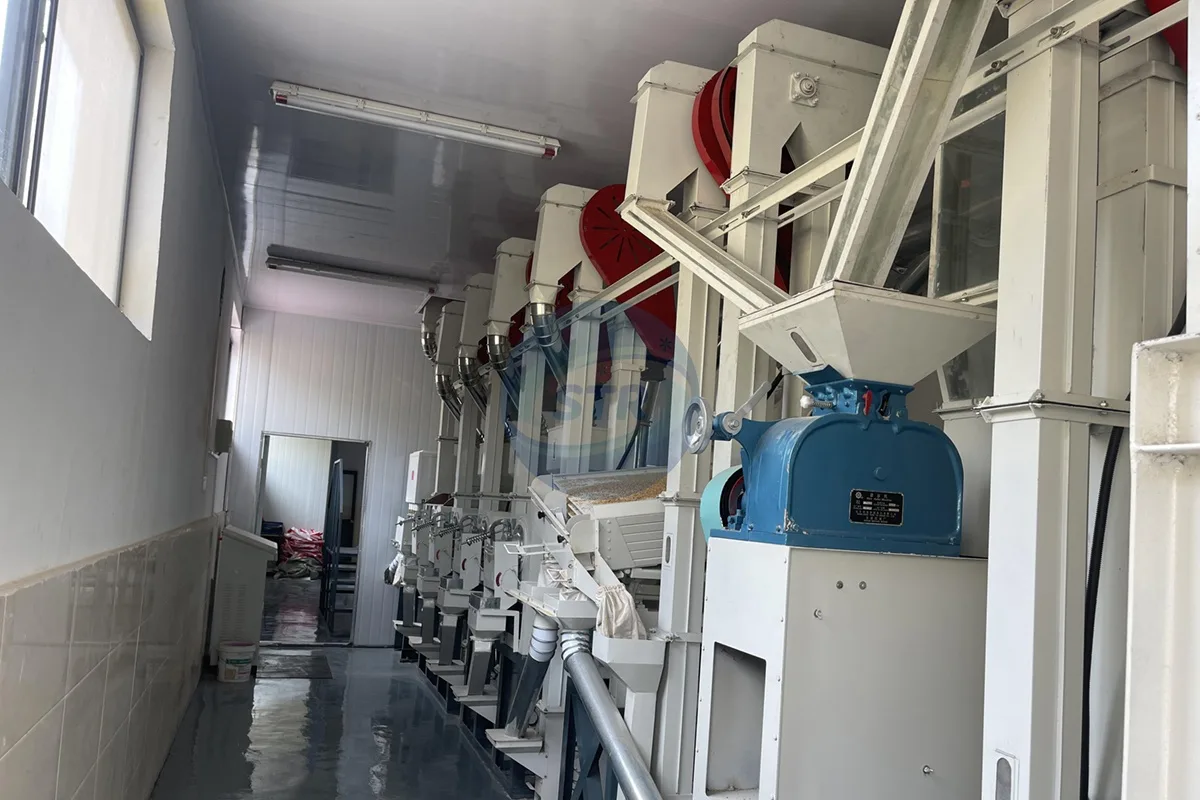

MCHJ20 Complete Rice Mill Plant
Entry-level complete rice mill plant for small commercial processors, covering paddy cleaning, husking, separation, whitening and basic grading with packing support when required.
Best for: Small local rice mills, new commercial milling projects and customers upgrading from compact combined units.
Main difference: Lower investment, compact layout and easier installation for starting a complete commercial rice milling line.
View Details →

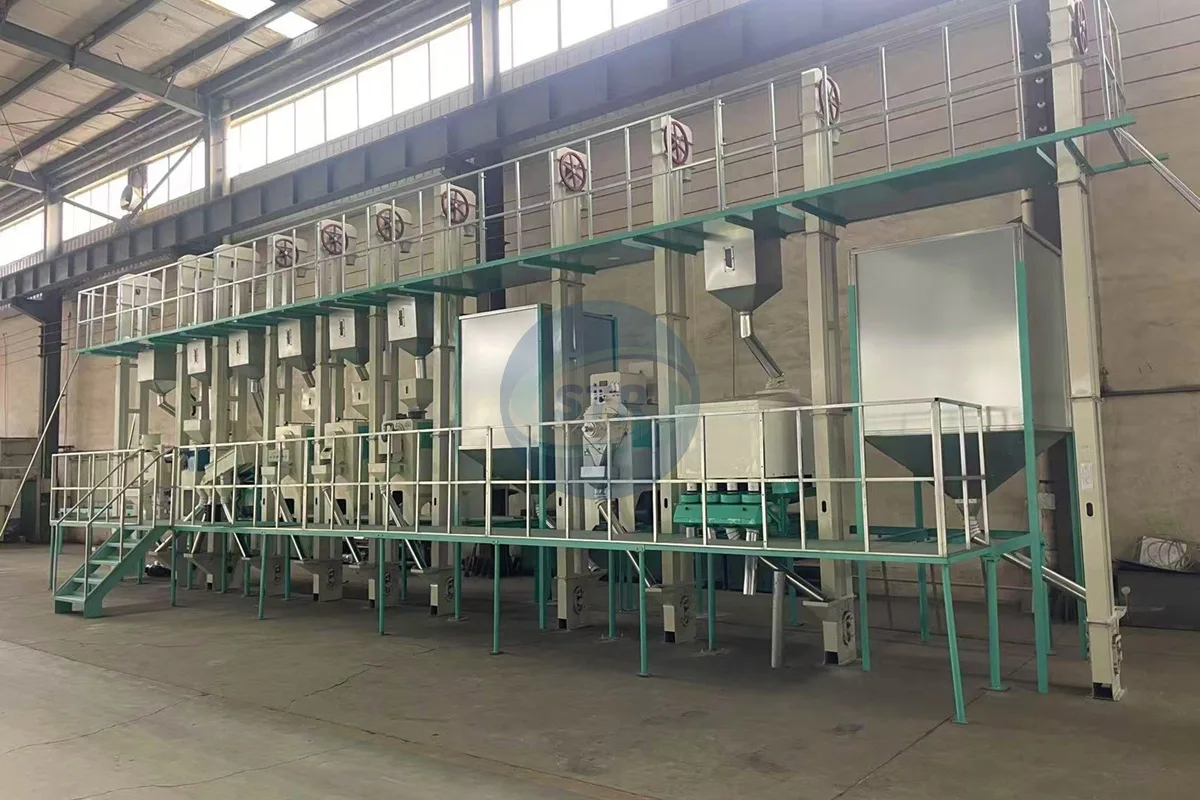

MCHJ30 / MCHJ40 Complete Rice Mill Plant
Modular complete rice milling line for steady regional production, with stronger cleaning, husking, whitening and grading sections than entry-level plants.
Best for: Regional processors that need stable daily output and practical room for future upgrades.
Main difference: Balanced capacity, flexible process matching and easier expansion with polishing, color sorting or packing equipment.
View Details →

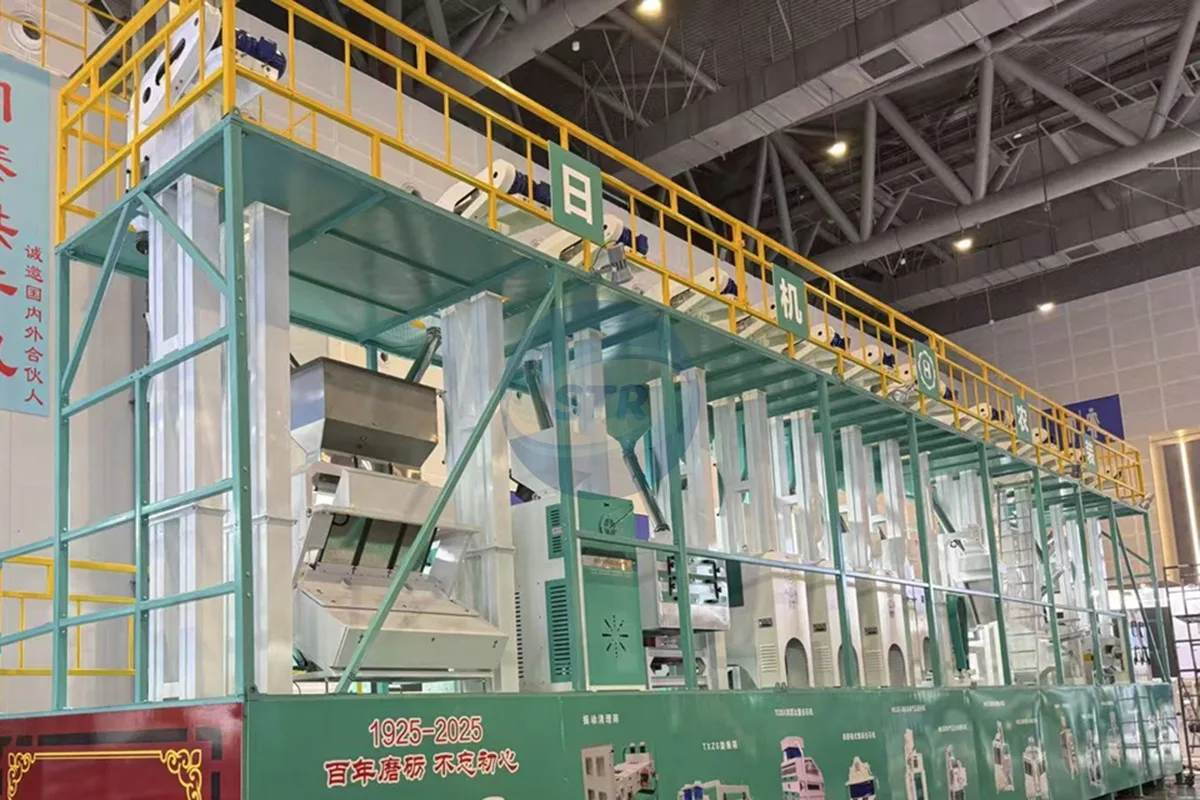

MCHJ50 / MCHJ60 / MCHJ80 Complete Rice Mill Plant
Commercial rice mill plant for larger production requirements, integrating more complete cleaning, destoning, whitening, polishing, grading, color sorting and packing sections.
Best for: Established rice mills serving larger local or regional markets.
Main difference: Higher capacity, more complete quality-control sections and stronger matching for automatic weighing and finished rice packing.
View Details →

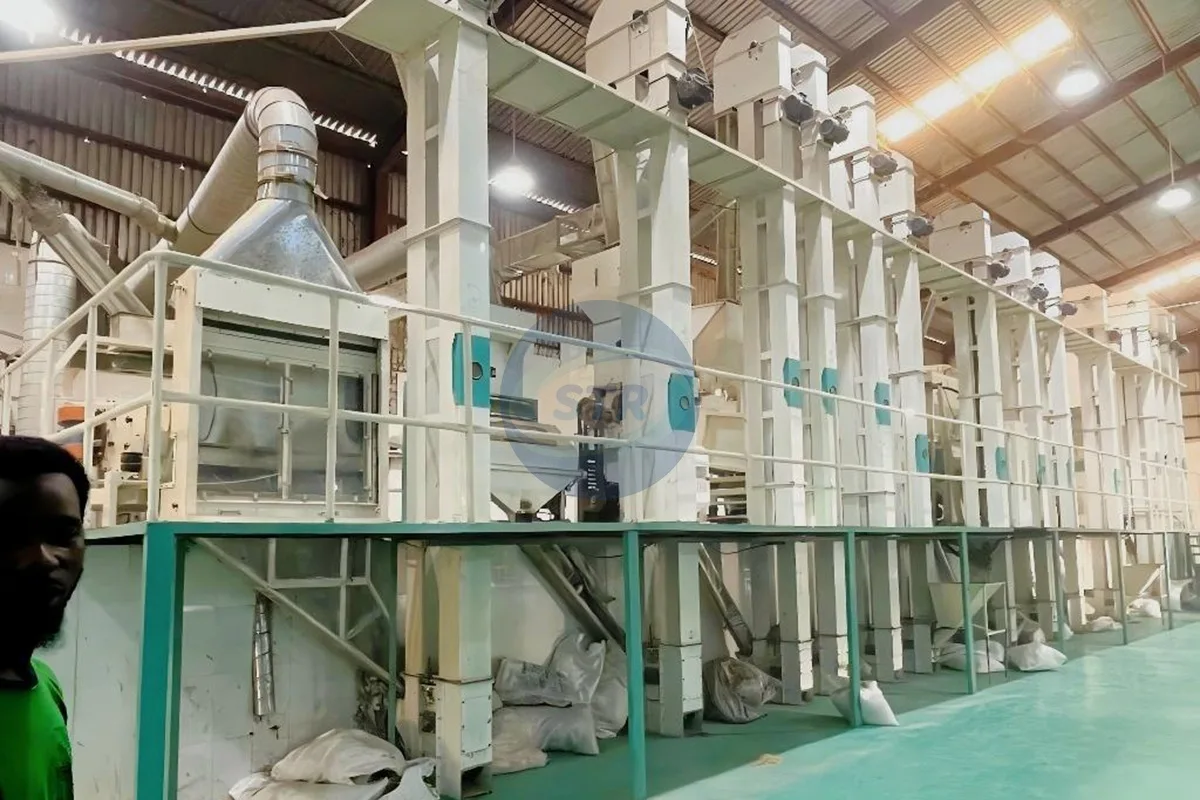

MCHJ100 Complete Rice Mill Plant
Medium-large complete rice mill plant for continuous commercial production, with more automated material transfer and finished-rice handling.
Best for: Processors moving from regional capacity to a more stable factory-style rice milling operation.
Main difference: Better automation balance, stronger quality-control options and more room for storage, sorting and packing integration.
View Details →

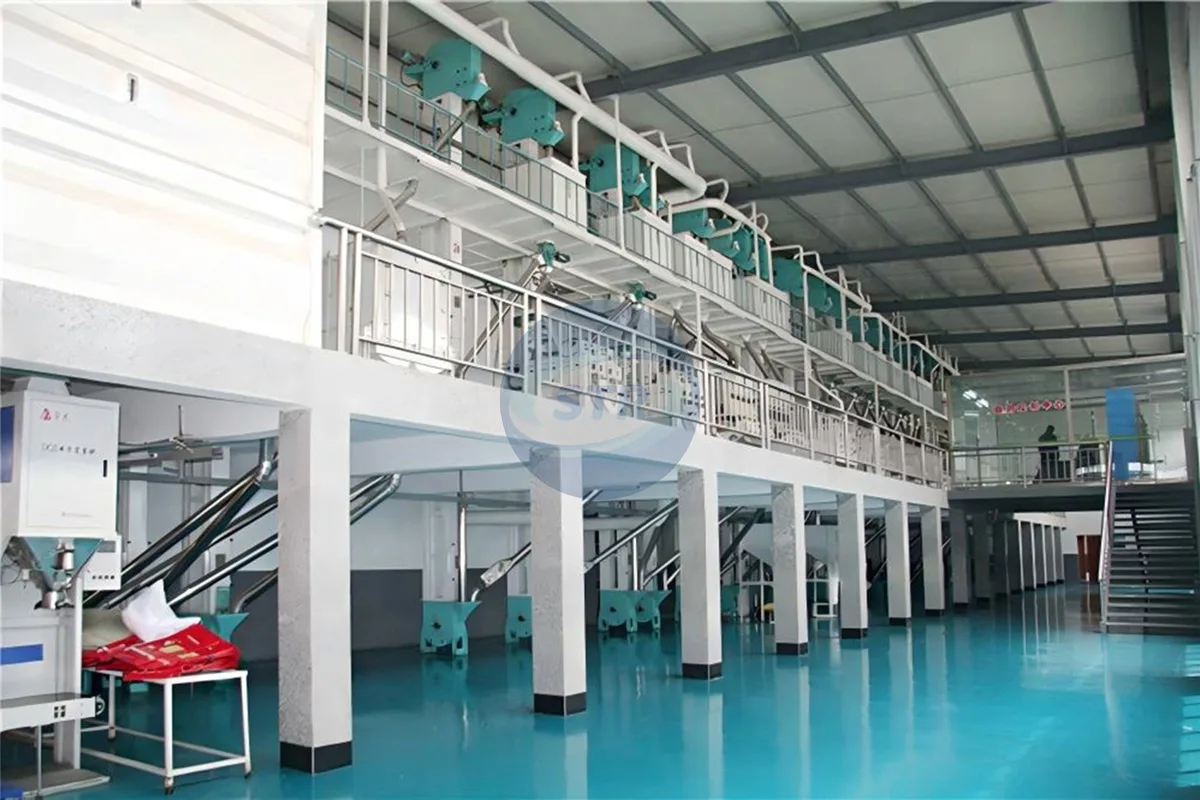

MCHJ150 Complete Rice Mill Plant
Advanced commercial rice mill plant for higher daily output, designed with coordinated cleaning, separation, multi-stage milling, polishing and packing sections.
Best for: Larger rice mills that need reliable daily production and improved finished-rice appearance.
Main difference: Stronger process continuity, more complete polishing/grading choices and better suitability for branded bagged rice production.
View Details →

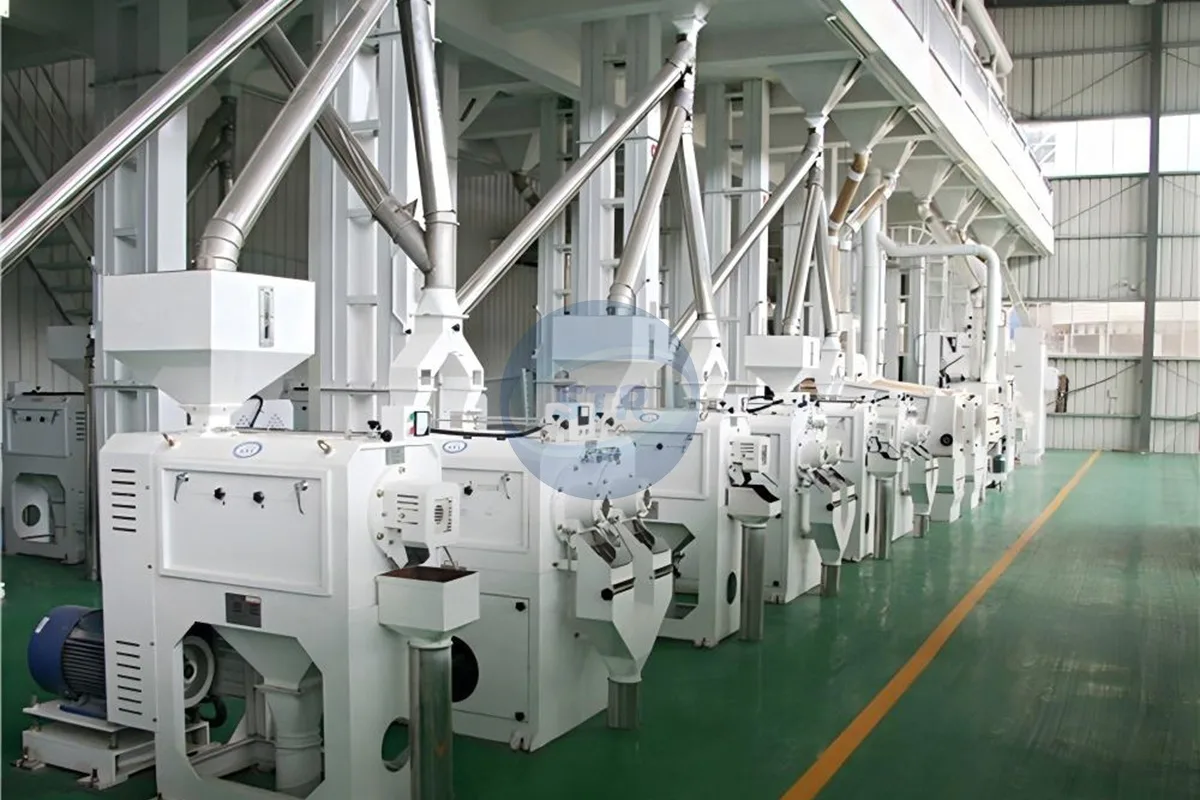

MCHJ200 Complete Rice Mill Plant
Large-capacity rice milling plant for industrial processors requiring stable throughput, automatic conveying and matched quality-control equipment.
Best for: Commercial rice factories, grain processors and regional supply centers with higher daily production targets.
Main difference: Higher automation level, stronger downstream grading/sorting/packing support and more demanding layout planning.
View Details →

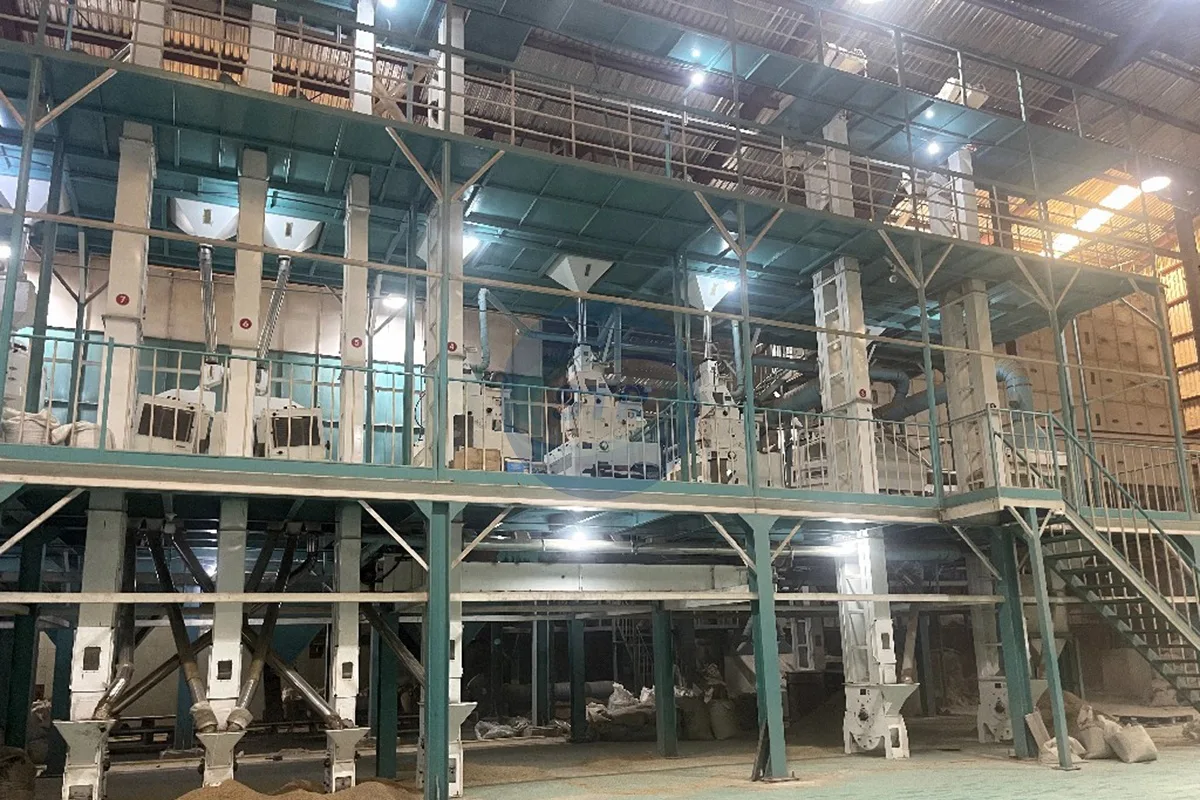

MCHJ250 / MCHJ300 Complete Rice Mill Plant
Industrial complete rice milling plant for high-volume processing, combining continuous intake, cleaning, husking, milling, polishing, grading, sorting and packing.
Best for: Large processors, grain warehouses and turnkey projects requiring stronger engineering coordination.
Main difference: High-throughput layout, multi-machine coordination and stronger requirements for dust collection, control systems and finished-rice logistics.
View Details →

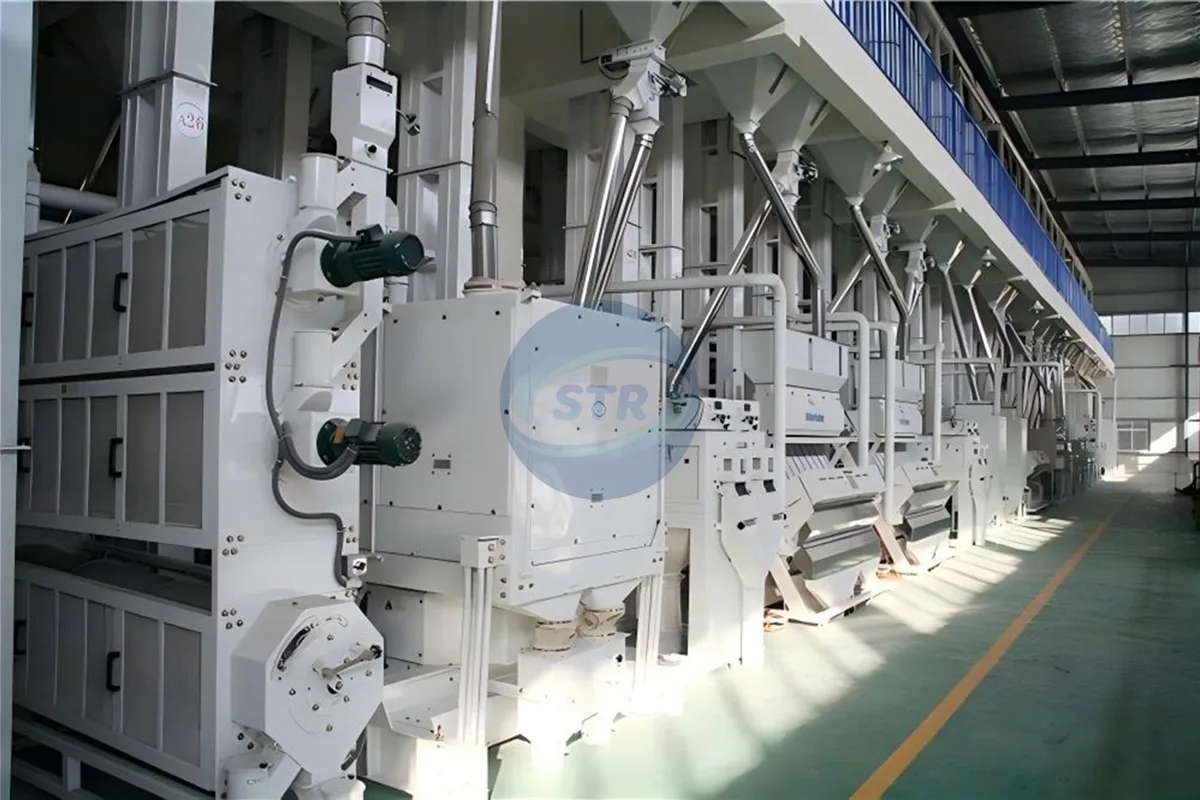

MCHJ500 Complete Rice Mill Plant
High-volume rice processing plant for large-scale grain operations, with multiple process sections matched for continuous production and finished-rice packing.
Best for: Large rice mills, grain storage companies and processors supplying wide regional markets.
Main difference: Stronger system integration, higher conveying demand and more complete quality-control and packing capacity.
View Details →

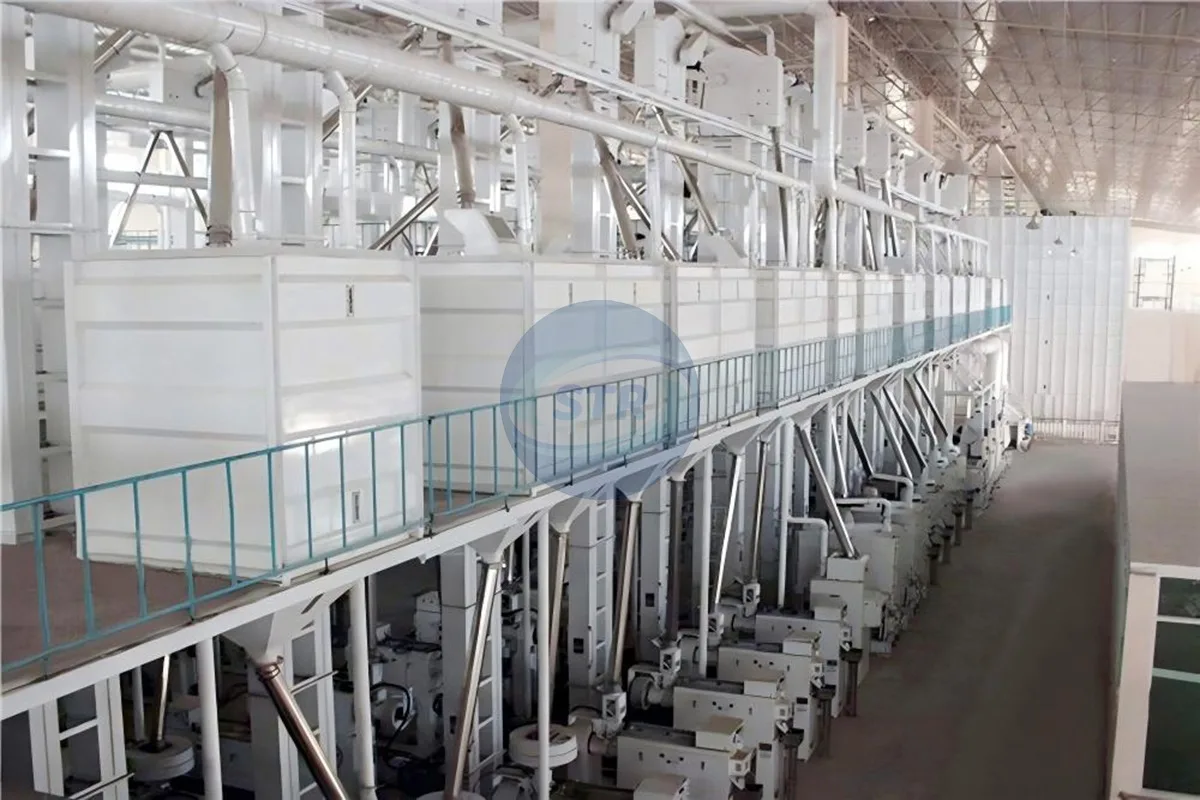

MCHJ1000 Complete Rice Mill Plant
Turnkey high-capacity rice milling plant for industrial-scale processing projects, configured around automated flow, quality control, storage and packing requirements.
Best for: Major grain processors, large warehouse projects and export-oriented rice milling operations.
Main difference: Highest project scale, full-line engineering coordination and the strongest need for layout, automation and utility planning.
View Details →
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
What capacity range can be configured?
The complete plant series covers different commercial and industrial project capacities.
Can the line be customized?
Yes, equipment configuration depends on paddy quality, output and final rice standard.
What should I provide for a proposal?
Capacity target, paddy type, building size, power condition and packing requirement.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Share your target TPD capacity, paddy condition, building layout and packing requirement for a complete rice mill plant proposal.
