Paddy Intake & Cleaning
Raw Paddy→Intake + Pre-cleaner→Pre-cleaned Paddy
Raw paddy enters the plant through the intake and conveying system, then passes through pre-cleaning to remove dust and large impurities.

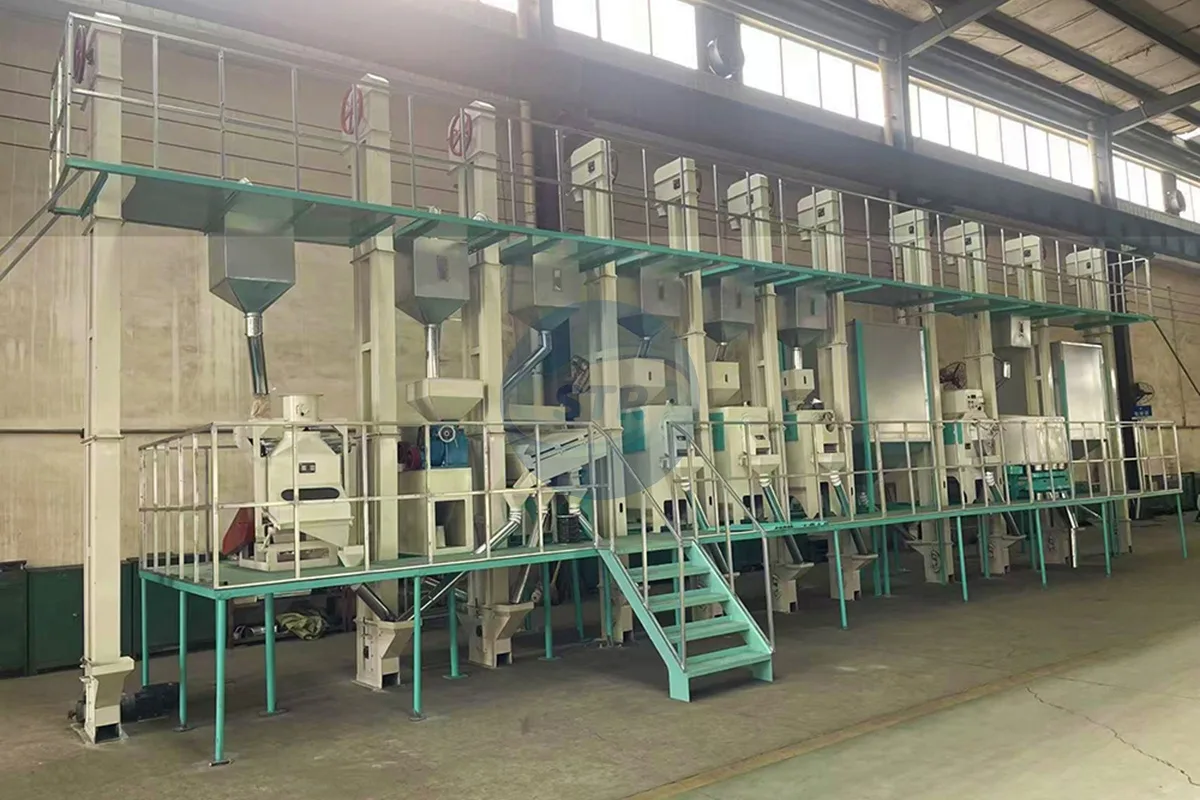

Complete Rice Mill Plant
MCHJ30 / MCHJ40 Complete Rice Mill Plant
MCHJ30/40 complete rice mill plant: A Practical Entry into Commercial Milling. This 30–40 TPD rice mill plant is designed for investors seeking a reliable system with a manageable footprint. Engineered for steady operation, it processes raw paddy into commercial-grade white rice while helping balance your initial capital expenditure.
Product ViewMCHJ30/40 Complete Rice Mill Plant
View Process →Interactive Process Explorer

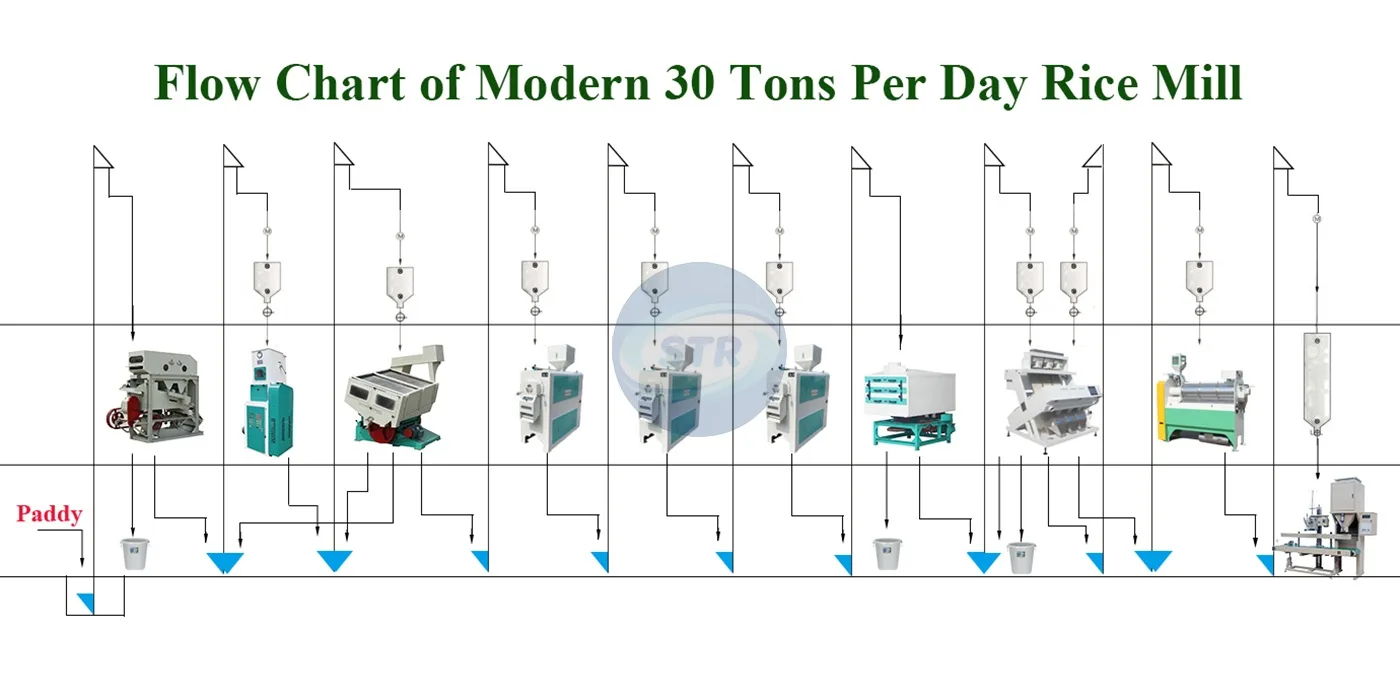

From Paddy to Finished Rice
Follow the commercial rice milling workflow from paddy intake and cleaning to husking, separation, whitening, polishing, grading, optional color sorting and finished rice packing.
De-stoning & Fine Cleaning
Pre-cleaned Paddy→Cleaner / De-stoner→Clean Paddy
Fine cleaning and de-stoning remove stones, light impurities and heavy particles to protect downstream huskers, whiteners and polishing equipment.
Husking & Paddy Separation
Clean Paddy→Husker + Paddy Separator→Brown Rice / Return Paddy
The husker removes the husk, and the paddy separator returns unhusked paddy while sending brown rice to the whitening section.
Whitening & Polishing
Brown Rice→Whitener / Polisher→Polished White Rice
Whitening removes the bran layer, while polishing can improve surface smoothness and appearance according to the required finished rice grade.
Grading & Color Sorting
White Rice→Grader + Color Sorter→Sorted Finished Rice
Grading separates rice by size, and color sorting can remove discolored grains or defects when required for higher-value finished rice.
Weighing & Packing
Finished Rice→Weighing / Packing Machine→Bagged Rice
Finished rice can be weighed, filled, sealed and prepared for warehouse storage, distribution or direct commercial sale.
Product Application
Application in Complete Rice Mill Plants
Flexible Commercial Production: Suitable for small-to-medium commercial rice processors. Its compact modular design allows for practical installation in existing warehouses, which can help reduce site preparation requirements and streamline the project timeline. This 30–40 TPD complete rice mill plant provides a solid foundation for business expansion.
Core FunctionComplete MCHJ rice mill plant solution for processing paddy into finished white rice at the selected 30–40 TPD project scale.
Buyer ValueDesigned as a coordinated plant system with matched cleaning, husking, separation, whitening, polishing, grading, sorting, packing, elevators and dust/bran collection according to the project layout.
Line CoverageCovers the complete route from paddy receiving and cleaning to destoning, husking, paddy separation, whitening, polishing, grading, color sorting, weighing, packing and material conveying, depending on the project plan.
Key Features
Configured as a Complete Processing Line
A complete plant is not one fixed machine; it is a matched system from raw paddy intake to finished rice packing.
Full Process Coverage
Covers paddy cleaning, destoning, husking, separation, whitening, polishing, grading, color sorting and packing when required.
Project-Based Design
Equipment quantity, capacity, elevators, dust collection and control layout are adjusted to the customer’s plant conditions.
Quality-Oriented Configuration
Polishing, grading, color sorting and packing sections can be strengthened for higher finished rice presentation.
Working Principle
How It Works in the Process
The complete plant is configured as a continuous process. Each machine handles one process step and transfers material to the next section through elevators and conveyors.
Paddy Intake
Raw paddy enters through receiving, conveying and pre-cleaning sections.
Core Milling
Cleaned paddy is husked, separated, whitened and polished according to the plant layout.
Quality Control
Grading and optional color sorting improve finished rice consistency and market grade.
Packing Output
Finished rice is sent to weighing, packing, storage or distribution.
Technical Specifications
Technical Specifications
MCHJ30 / MCHJ40 Complete Rice Mill Plant specifications are planned around 30–40 TPD output, process configuration, automation level and workshop layout. Final machine list is confirmed after raw paddy condition and finished-rice quality requirements are reviewed.
| Item | Specification | Configuration Note |
|---|---|---|
| Model / Capacity | MCHJ30 / MCHJ40 | Target output: 30–40 TPD |
| Core Process Sections | Paddy intake, cleaning, de-stoning, husking, paddy separation, whitening and rice grading | Standard sections for a complete rice milling line |
| Quality-Control Options | Water/mist polishing, length grading, color sorting and bran/dust collection | Matched according to finished rice grade and market requirement |
| Packing / Storage Support | Automatic weighing and bagging, finished rice bins, elevators, conveyors and silo/drying support when required | Selected according to packing format, storage plan and site layout |
| Applicable Project | Complete rice mill plant with compact commercial layout | Engineering layout, power plan and installation proposal are provided for the selected configuration |
Plant Planning Guide
How to Plan a Complete Rice Mill Plant
Choose the plant by daily paddy input, finished rice quality target, automation level and the space available for the full processing line.
Daily CapacityConfirm whether the project is a compact commercial line, regional mill or high-capacity continuous rice processing plant.
Process SectionsSelect cleaning, destoning, husking, separation, whitening, polishing, grading, color sorting, packing, conveying and storage according to the quality target.
Customized LayoutPlant specifications are project-based; equipment is arranged according to raw paddy condition, workshop layout and final rice requirements.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
What capacity range can be configured?
The complete plant series covers different commercial and industrial project capacities.
Can the line be customized?
Yes, equipment configuration depends on paddy quality, output and final rice standard.
What should I provide for a proposal?
Capacity target, paddy type, building size, power condition and packing requirement.
