Input Material
Finished rice or grain product
Rice Packing Equipment
DCS-15FB3 Rice Bag Packing Machine
DCS-15FB3 Rice Bag Packing Machine: Accurate Final Packaging. Engineered for commercial rice processors, this automated bagging machine provides precise weighing and sealing for smaller retail bags. It streamlines your dispatch process and ensures a professional presentation.
Product ViewDCS-15FB3 Packing Machine
View Process →Product Application
Application in Finished Rice Packing
This DCS-15FB3 rice bag packing machine is used to weigh, fill and pack rice into bags for commercial rice packaging. It is suitable when a specific packing capacity or bag weight range is required.
Core FunctionAutomatic weighing, filling and packing of finished rice into bags or retail packages.
Buyer ValueImproves packing accuracy, labor efficiency and finished product handling for commercial rice mills.
Packing StageUsed at the final packing stage after grading, color sorting and finished-rice buffering, preparing rice for storage, transport and sale.
Process Result & Line Integration
How DCS-15FB3 Rice Bag Packing Machine Fits in the Rice Milling Line
See how finished rice enters the weighing, filling or sealing section and becomes ready for storage or distribution.
Processing Action
Automatic weighing, filling, sealing or flow measurement
Output / Next Step
Bagged product or measured material flow
Key Features
For Accurate Small-Bag Rice Packing
Designed for smaller finished-rice bag formats where weighing accuracy, bag handling and packing speed are important.
Small-Bag Range
Reference DCS-15FB2 data supports 1–15kg finished-rice packages.
High-Speed Packing
Suitable for projects that need fast small-bag packing and stable weighing control.
Bag Closing Support
Can be matched with sewing/sealing and conveyor handling according to the packing layout.

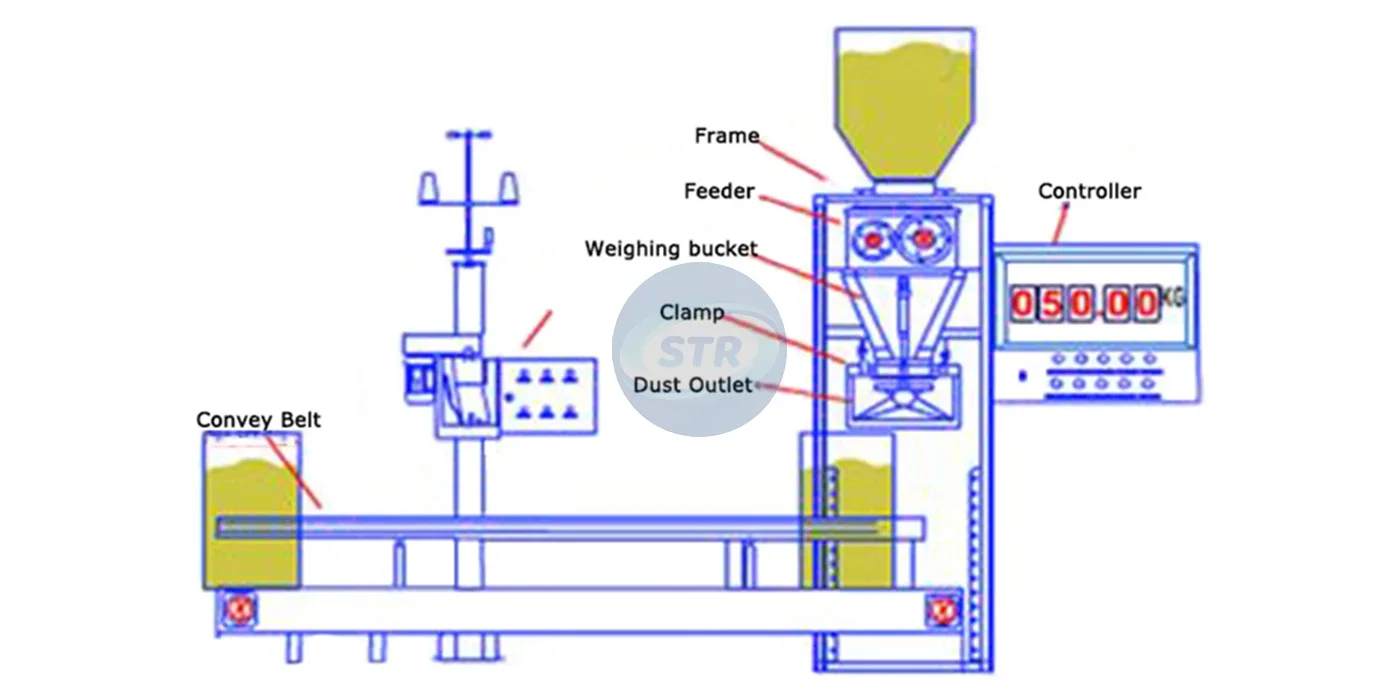

Working Principle
How It Works in the Process
Use weighing, feeding, filling and sealing/sewing systems to complete quantitative packing.
Input
Finished rice enters the weighing, filling, sealing or flow-measurement section.
Weighing / Filling
The equipment measures or fills rice according to the required bag or process format.
Package Handling
Filled bags are sealed, discharged or transferred to the next handling step.
Output
Rice is prepared for storage, distribution, retail packing or production monitoring.
Technical Specifications
15kg-Class Rice Bag Packing Specifications
Reference specifications are listed for the DCS-15FB2 15kg-class packing configuration. Final model and automation level can be confirmed according to bag weight, packing speed and bag-closing method.
| Item | DCS-15FB2 Reference Specification |
|---|---|
| Reference model | DCS-15FB2 |
| Weighing range | 1–15 kg |
| Division value | 2 g |
| Weighing accuracy | 0.1% F.S |
| Weighing speed | 600–1200 bags/hour |
| Working environment / power supply | Relative humidity ≤90%, 4N-AC 380V 50Hz |
| Power & air consumption | 1.1 kW, 0.4–0.5 MPa compressed air, 1 m³/h |
| Sewing machine | GK35-6A |
| Overall dimensions | 3130 × 860 × 2335 mm |
| Suitable bag range | 2–15kg bags; packing capacity depends on one-bag weight |
15kg-Class Packing Selection
When to Choose a 15kg-Class Rice Bag Packing Machine
Use this type of packing machine when finished rice is sold in smaller bags and the line needs accurate weighing, bag clamping, conveying and sewing or sealing support.
Bag WeightSuitable for smaller finished-rice packages around the 1–15kg class rather than heavy wholesale bags.
Packing SpeedChoose according to target bags per hour; the reference DCS-15FB2 configuration supports high-speed small-bag packing.
Bag ClosingConfirm whether the project needs sewing, sealing, printing, conveyor lifting or automatic bag handling.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
Which bag sizes can be supported?
It depends on model and scale configuration.
Is vacuum packing available?
Yes, vacuum packing is handled by the DCS-ZK vacuum packing machine.
What information is needed?
Bag weight, bag type, packing speed and finished rice requirement.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send bag weight, bag type, packing speed and finished rice flow to select the right packing system.
