Input Material
Bulk grain or rice material
Material Handling Equipment
DTTG50/33 Low Speed Bucket Elevator
DTTG50-33 Low-Speed Bucket Elevator: Industrial Material Flow. Connect your major processing sections securely. This heavy-duty elevator ensures stable milling performance by preventing upstream blockages and grain degradation.

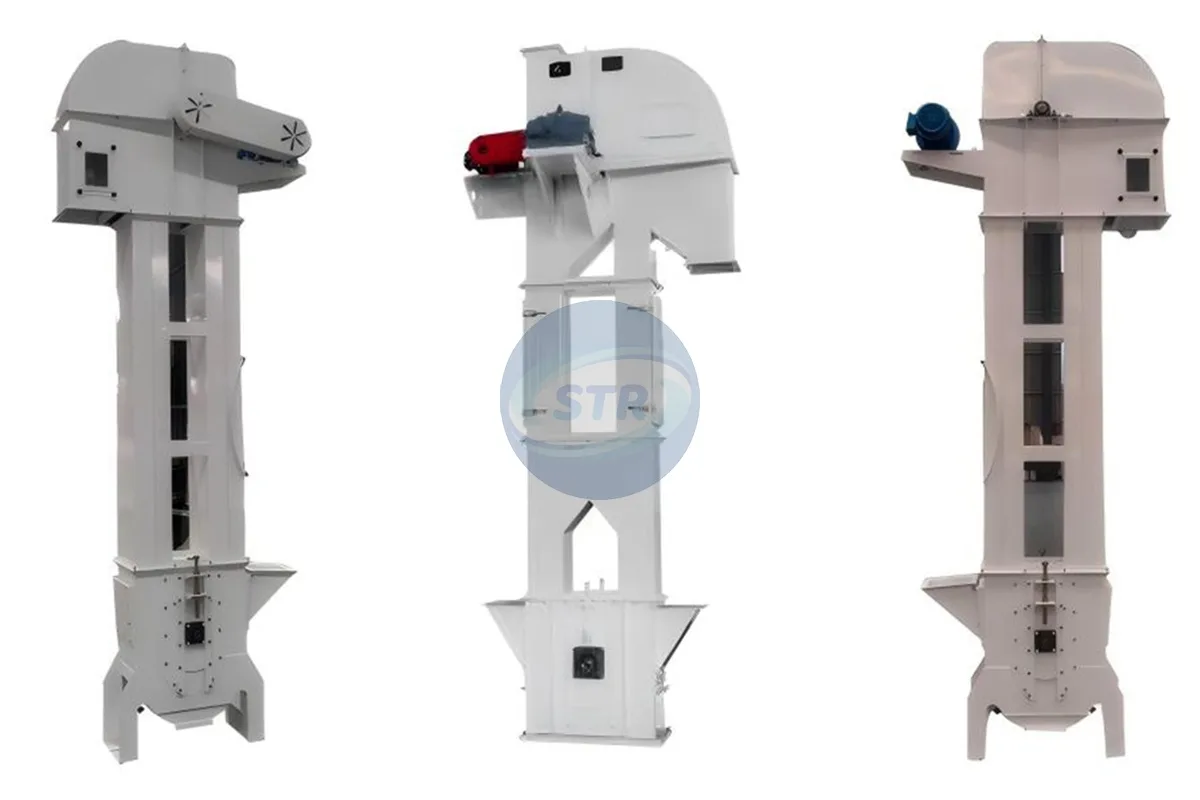

Product ViewDTTG50-33 Low-Speed Elevator
View Process →Product Application
Application in Material Transfer
This DTTG50/33 low speed bucket elevator is used for higher-capacity gentle vertical conveying of rice or grain. It is suitable for commercial rice processing lines where material protection and stable feeding are important.
Core FunctionMaterial conveying and lifting between rice milling machines, silos, bins and packing sections.
Buyer ValueKeeps the plant flow continuous, reduces manual handling and connects machines at different heights or layout positions.
Material Flow RoleTransfers paddy, brown rice, white rice, husk or bran between machines, silos, bins and packing sections so the whole plant can run with stable material flow.
Process Result & Line Integration
How DTTG50/33 Low Speed Bucket Elevator Fits in the Rice Milling Line
See how material is lifted or transferred between machines, silos and packing sections.
Processing Action
Vertical or horizontal conveying
Output / Next Step
Continuous feeding to the next machine or storage section
Key Features
Moves Material Between Rice Milling Sections
Conveying equipment connects separate machines into a continuous processing line and keeps material flow stable.
Section Connection
Transfers material from cleaners to huskers, whiteners, graders, silos, packing machines or auxiliary equipment.
Layout Flexibility
Selected according to workshop height, machine position, inlet/outlet direction and installation space.
Stable Flow
Proper conveying reduces material accumulation, manual handling and process interruptions.
Working Principle
How It Works in the Process
The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top. The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials. No.
Input
Paddy, rice, husk, bran or grain enters the conveying equipment.
Transfer
The equipment lifts or transfers material between machines, bins, silos or packing sections.
Flow Control
Stable conveying helps keep the rice milling line continuous and balanced.
Output
Material reaches the next machine, storage point or discharge position.
Technical Specifications
Technical Specifications
DTTG50/33 Low Speed Bucket Elevator is selected by conveying capacity, lifting height, material type, inlet/outlet position and the equipment it connects in the rice milling line.
| Item | Specification | Selection Note |
|---|---|---|
| Conveying role | Paddy, brown rice, white rice, bran or husk transfer | Confirm material and process stage |
| Capacity | Matched to upstream and downstream machine capacity | Avoid bottlenecks in continuous operation |
| Installation | Lifting height, outlet direction and inlet position are layout-dependent | Confirm workshop height and equipment arrangement |
| Drive / structure | Model-specific motor, belt/chain/screw and casing configuration | Selected by conveying distance and maintenance preference |
Material Transfer Selection
How to Choose Rice Mill Conveying Equipment
Select according to material type, lifting height, transfer distance, required capacity, inlet/outlet position and dust-control requirement.
Transfer DirectionUse bucket elevators for vertical lifting; use belt, screw or loading equipment for horizontal or inclined transfer.
Capacity & HeightMatch elevator speed, bucket size, belt width or screw diameter to line capacity and workshop height.
Material ConditionConsider raw paddy, brown rice, white rice, husk or bran flow to reduce breakage, blockage and leakage.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
How are supporting machines selected?
They depend on line capacity, material flow and plant layout.
Which spare parts can be supplied?
Key spare parts such as rubber rollers, sieves and elevator buckets can be matched according to the machine model and wearing conditions.
What should I provide?
Machine model, capacity and installation position.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send model, capacity and line layout information so we can match the right supporting equipment or spare part.
