Input Material
Cleaned paddy
Husking & Separation Equipment
MLGT Rubber Roll Paddy Husker
MLGT Rubber Roll Paddy Husker: Core Hulling Efficiency. Designed for commercial rice processors, this paddy husker provides stable husk removal with controlled pressure, helping you improve yield and maintain brown rice integrity before the whitening stage.

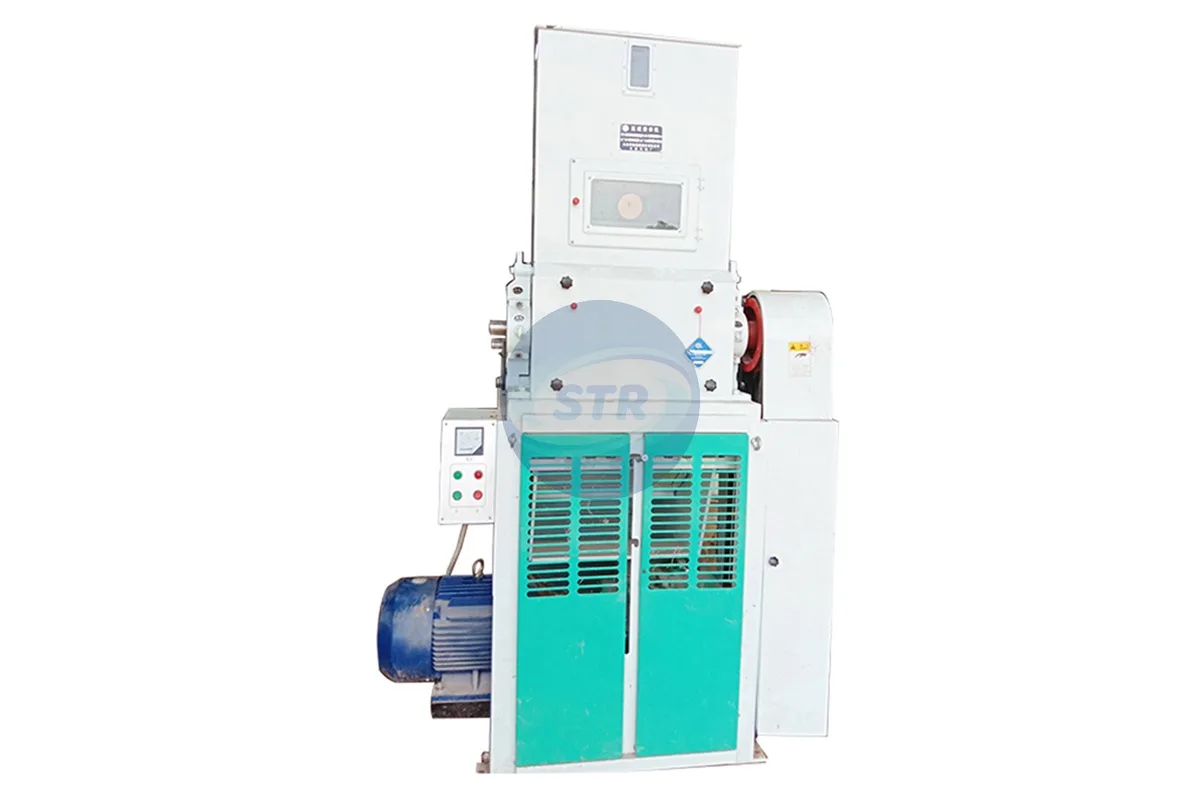

Product ViewMLGT Rubber Roll Paddy Husker
View Process →Product Application
Application in Husking and Paddy Separation
High-Volume Paddy Hulling: Installed after the cleaning section, the MLGT rubber roll paddy husker separates the husk from the grain. It is engineered to handle continuous production in large rice mills, sending a clean mixture of brown rice and unhusked paddy to the separator.
Core FunctionPaddy husking / hulling to remove husk from cleaned paddy and produce brown rice.
Buyer ValueRubber roller or hulling design helps achieve stable husking while reducing broken rice and preparing material for paddy separation.
Line IntegrationWorks after cleaning/destoning and before paddy separation. It removes husk from paddy and sends the mixture forward for separation of brown rice and unhusked paddy.
Process Result & Line Integration
How MLGT Rubber Roll Paddy Husker Fits in the Rice Milling Line
See the material entering the husking or separation section and the brown rice or return paddy produced after processing.
Processing Action
Rubber roller husking and husk separation
Output / Next Step
Brown rice for paddy separation or whitening
Key Features
Stable Husking Before Rice Whitening
Removes husk and prepares brown rice for whitening while controlling broken rate and return-paddy flow.
Rubber Roll Husking
Uses rubber rolls and controlled feeding to remove husk from cleaned paddy.
Husk Aspiration
Separates husk through suction or aspiration so brown rice can move to the next stage.
Separation Accuracy
Paddy separators improve brown rice purity before whitening and reduce repeated milling problems.
Working Principle
How It Works in the Process
Use rubber rollers or hulling mechanism to remove husk, then separate husk from brown rice through air aspiration.
Input
Cleaned paddy or a husked mixture enters the husking and separation section.
Husking / Separation
The machine removes husk or separates brown rice from unhusked paddy.
Return Flow
Unhusked paddy, husk or mixed material is discharged or returned as required.
Output
Brown rice moves forward to whitening or milling.
Technical Specifications
Technical Specifications
MLGT rubber roll paddy husker uses rubber rollers and suction to remove husk and separate husk from brown rice.
| Model | Capacity | Power | Hulling Rate | Weight / Dimension |
|---|---|---|---|---|
| MLGT15 | 1.5–2 t/h | 4 kW | 85–90% | 320 kg; 1180×850×1400 mm |
| MLGT20 | 2–2.5 t/h | 5.5 kW | 85–90% | 650 kg; 1135×935×1800 mm |
| MLGT25 | 2.5–3 t/h | 5.5 kW | 85–90% | 670 kg; 1325×994×2060 mm |
| MLGT36 | 3.5–4.5 t/h | 7.5 kW | 85–90% | 920 kg; 1275×1278×2193 mm |
| MLGT51 | 5–6 t/h | 11 kW | 85–90% | 1100 kg; 1380×1450×2265 mm |
Husking & Separation Selection
How to Choose Paddy Husking and Separation Equipment
Select according to paddy flow, rubber roller size, husking rate, brown rice quality and the return-paddy separation requirement.
Husking CapacityMatch the husker size to the upstream cleaner and the downstream paddy separator or rice whitener.
Brown Rice QualitySelect feeding, rubber roller and aspiration configuration to reduce broken rice and separate husk effectively.
Return Paddy ControlUse a paddy separator when the line must separate brown rice from unhusked paddy before whitening.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
What is the difference between husker and separator?
The husker removes husk; the separator separates brown rice from unhusked paddy.
Which models are suitable?
Selection depends on capacity, paddy type and full line configuration.
Are rubber rollers spare parts?
Rubber rollers are consumable parts for huskers and can be listed separately.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send us your paddy type, capacity and existing line layout to choose the right husker or separator.
