Paddy Feeding & Cleaning
Raw Paddy→Elevator + Cleaner / De-stoner→Clean Paddy
Paddy is fed into the compact line and cleaned to remove dust, light impurities, stones or other foreign materials before milling.
Compact Rice Mill Line
6LN-18/15SF Integrated Rice Milling Machine
6LN-18/15SF Integrated Rice Milling Machine: Upgraded Compact Production. Building on the combined design, this model features enhanced aspiration and improved bran separation. It helps small-to-medium commercial processors produce cleaner white rice while maintaining a small factory footprint.
Product View6LN-18/15SF Integrated Rice Mill
View Process →Interactive Process Explorer
From Paddy to Finished Rice
Follow the compact rice milling flow from paddy feeding and cleaning through husking, whitening, grading and optional weighing or packing when this section is included in the line.
Paddy Husking
Clean Paddy→Husker / Huller→Brown Rice + Husk
The husking section removes the outer husk and sends brown rice forward while husk is discharged separately.
Rice Whitening / Milling
Brown Rice→Rice Mill / Whitener→White Rice
The milling section removes the bran layer and converts brown rice into white rice based on the required milling result.
Rice Grading / Separation
White Rice→Grader / Separator→Finished Rice Grades
The grading or separation section helps classify milled rice and prepare a cleaner, more consistent output.
Optional Weighing & Packing
Finished Rice→Packing Scale→Bagged Rice
When a weighing or packing machine is included, finished rice can be weighed and packed for storage, distribution or sale.
Product Application
Application in Compact Rice Milling Lines
This 6LN-18/15SF integrated rice milling machine is used as a compact commercial rice milling line for processing paddy into white rice through combined cleaning, husking, whitening/milling and basic grading or separation sections. It is suitable for small commercial processors with limited workshop space.
Core FunctionCompact commercial rice production line for converting paddy into finished rice, using a space-saving integrated layout.
Buyer ValueCombines several core processing sections in one line, helping small commercial mills reduce installation space, simplify operation and prepare finished rice for optional sorting, packing or further upgrading.

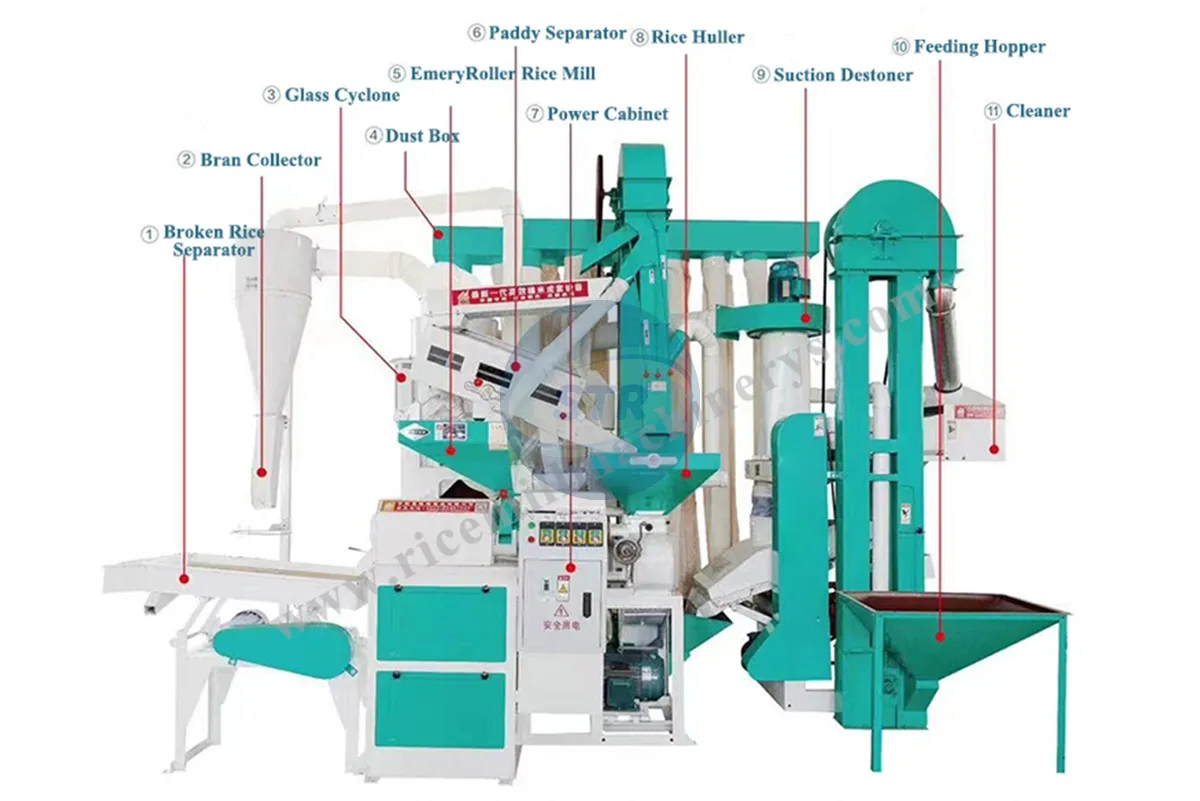

Line CoverageThe 6LN-18/15SF line combines cleaning, destoning, husking, whitening/milling and basic separation in a compact layout, with weighing/packing or color sorting matched separately according to the project.
Key Features
Built for Compact Commercial Milling
Combines several core rice milling steps in a space-saving layout while leaving room for practical upgrades.
Integrated Workflow
Brings cleaning, husking, whitening and basic rice handling into one compact commercial arrangement.
Lower Installation Burden
Reduces workshop space, civil work and equipment matching work compared with a larger complete plant.
Expandable Configuration

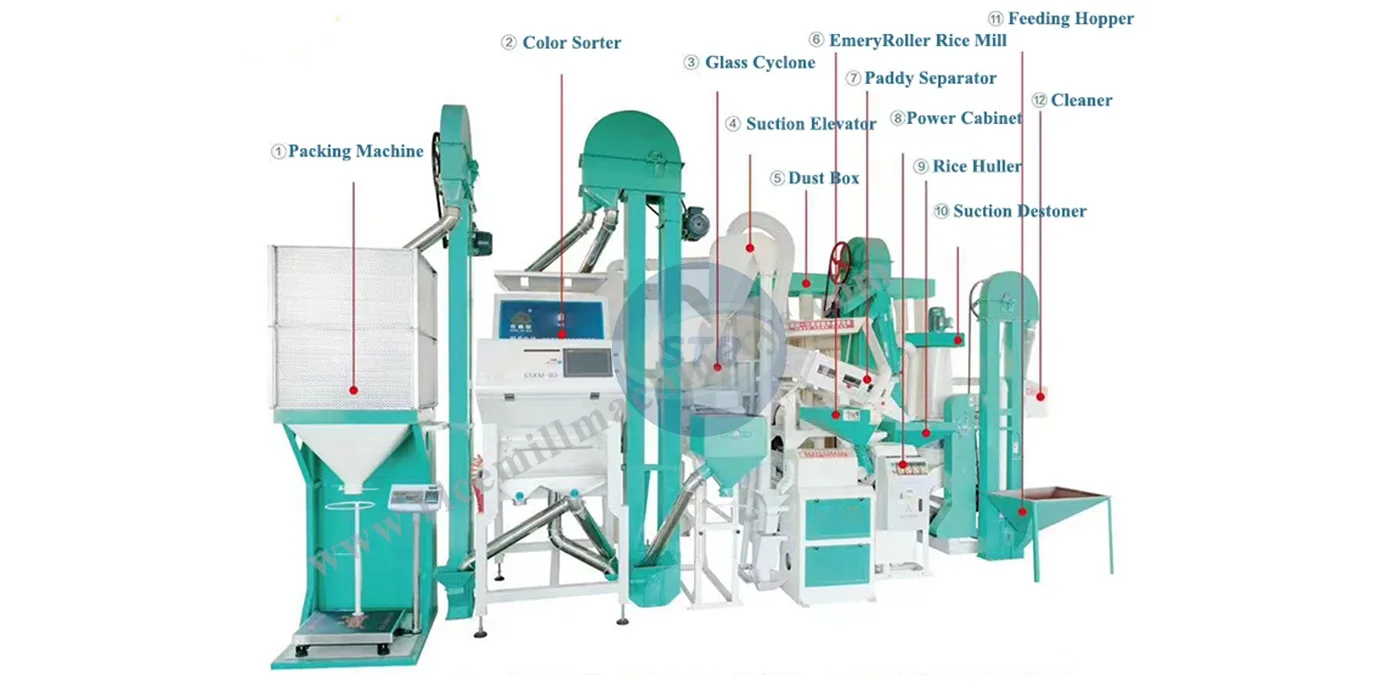

Can be matched with color sorter, mist polisher, conveyors or packing equipment as the project develops.
Working Principle
How It Works in the Process
The integrated line connects multiple rice milling steps in a compact layout. Paddy passes through cleaning, husking, milling and grading sections according to the required process plan.
Input
Raw paddy enters the compact line through feeding and cleaning equipment.
Combined Processing
Cleaning, husking, whitening and basic grading are arranged in a space-saving production layout.
By-product Removal
Husk, bran and impurities are discharged through separate outlets as required.
Output
White rice moves to grading, sorting, weighing or packing according to the final line plan.
Technical Specifications
Technical Specifications
The 6LN-18/15SF is selected for compact commercial rice milling projects that need a space-saving integrated layout with optional downstream quality-control or packing equipment.
| Item | Specification | Selection Note |
|---|---|---|
| Model | 6LN-18 / 15SF integrated line | Compact integrated rice milling configuration |
| Core sections | Cleaning/de-stoning, husking, whitening/milling, separation and basic grading | For small commercial processors with limited space |
| Downstream matching | Optional polishing, color sorting and weighing/packing | Add according to finished rice grade and sales format |
| Applicable project | Small commercial rice processing line | Confirm by paddy condition, target output and available workshop area |
Compact Line Selection
How to Match a Compact Rice Milling Line
Start from daily output, workshop space and which process sections must be included in one compact layout.
Capacity & SpaceConfirm target daily output, available floor area and whether the line needs to stay compact for a small commercial workshop.
Included SectionsCheck whether cleaning, destoning, husking, separation, whitening, grading and weighing/packing are included or added separately.
Upgrade PlanDecide whether color sorting, water polishing, extra elevators or packing equipment will be added now or reserved for later expansion.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
Is this a household mini rice mill?
No. It is positioned as a compact commercial rice milling line.
What information is needed for selection?
Required output, paddy variety, workshop space and target finished rice quality.
Can color sorting or packing be added?
Yes, optional sections can be matched according to the project.
