Paddy Feeding & Cleaning
Raw Paddy→Elevator + Cleaner / De-stoner→Clean Paddy
Paddy is fed into the compact line and cleaned to remove dust, light impurities, stones or other foreign materials before milling.
Compact Rice Mill Line
Mini1500 Compact Rice Mill Plant
Mini1500 Compact Rice Mill Plant: Stepping Up Commercial Capacity. Operating at 1500kg per hour, this compact line bridges the gap between integrated machines and large complete plants. It offers small-to-medium commercial processors improved yield, reliable material flow, and the option to add grading equipment.
Product ViewMini1500 Compact Rice Mill Plant
View Process →Interactive Process Explorer
From Paddy to Finished Rice
Follow the compact rice milling flow from paddy feeding and cleaning through husking, whitening, grading and optional weighing or packing when this section is included in the line.
Paddy Husking
Clean Paddy→Husker / Huller→Brown Rice + Husk
The husking section removes the outer husk and sends brown rice forward while husk is discharged separately.
Rice Whitening / Milling
Brown Rice→Rice Mill / Whitener→White Rice
The milling section removes the bran layer and converts brown rice into white rice based on the required milling result.
Rice Grading / Separation
White Rice→Grader / Separator→Finished Rice Grades
The grading or separation section helps classify milled rice and prepare a cleaner, more consistent output.
Optional Weighing & Packing
Finished Rice→Packing Scale→Bagged Rice
When a weighing or packing machine is included, finished rice can be weighed and packed for storage, distribution or sale.
Product Application
Application in Compact Rice Milling Lines
This Mini1500 compact rice mill plant is used as a small commercial rice production line for turning paddy into white rice through combined cleaning, husking, whitening/milling and basic grading or separation sections.
Core FunctionCompact commercial rice production line for converting paddy into finished rice, using a space-saving integrated layout.
Buyer ValueCombines several core processing sections in one line, helping small commercial mills reduce installation space, simplify operation and prepare finished rice for optional sorting, packing or further upgrading.
Line CoverageDesigned as a compact plant layout for small commercial mills, covering cleaning, husking, whitening/milling and basic separation or grading, with packing and color sorting matched according to the selected configuration.
Key Features
Built for Compact Commercial Milling
Combines several core rice milling steps in a space-saving layout while leaving room for practical upgrades.
Integrated Workflow
Brings cleaning, husking, whitening and basic rice handling into one compact commercial arrangement.
Lower Installation Burden
Reduces workshop space, civil work and equipment matching work compared with a larger complete plant.
Expandable Configuration
Can be matched with color sorter, mist polisher, conveyors or packing equipment as the project develops.
Working Principle
How It Works in the Process

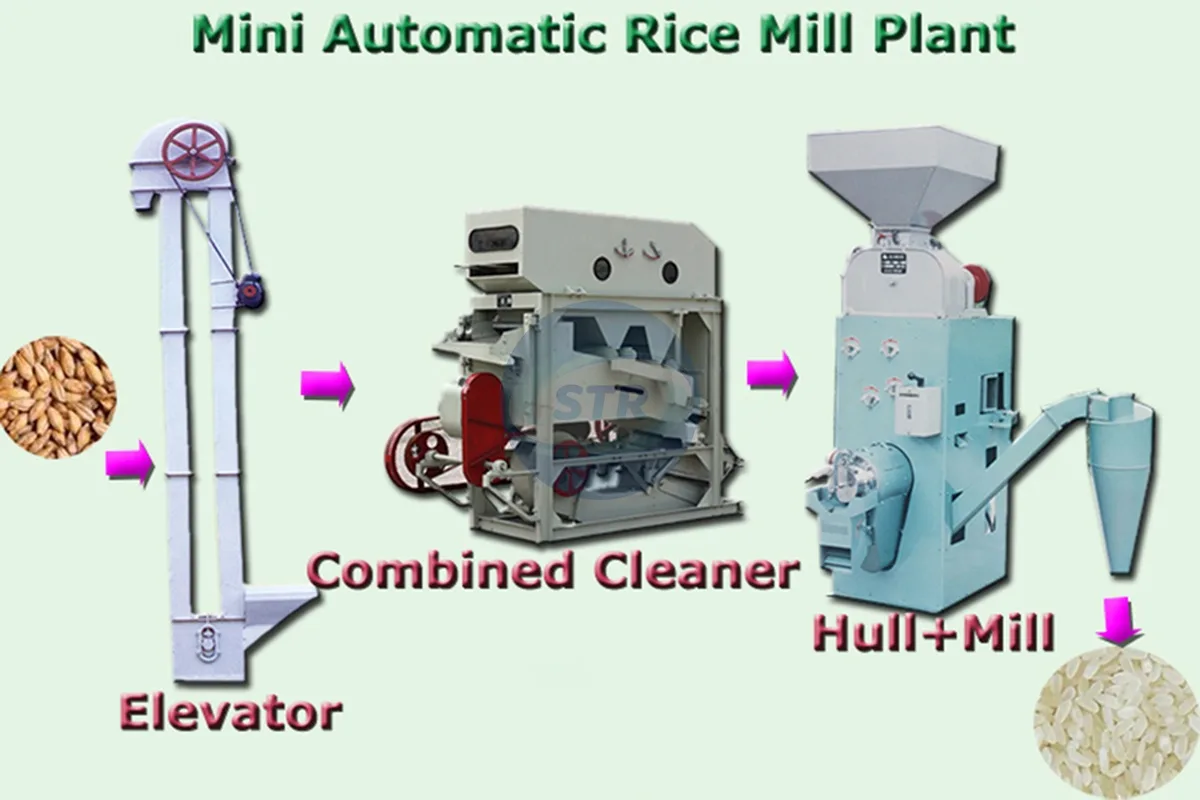

The integrated line connects multiple rice milling steps in a compact layout. Paddy passes through cleaning, husking, milling and grading sections according to the required process plan.
Input
Raw paddy enters the compact line through feeding and cleaning equipment.
Combined Processing
Cleaning, husking, whitening and basic grading are arranged in a space-saving production layout.
By-product Removal
Husk, bran and impurities are discharged through separate outlets as required.
Output
White rice moves to grading, sorting, weighing or packing according to the final line plan.
Technical Specifications
Technical Specifications
Mini1500 is a higher compact-line configuration for small commercial processors that need stronger milling quality and optional packing or color sorting.
| Item | Specification | Selection Note |
|---|---|---|
| Capacity class | Compact line, higher than Mini1000 class | Select by target hourly output and paddy condition |

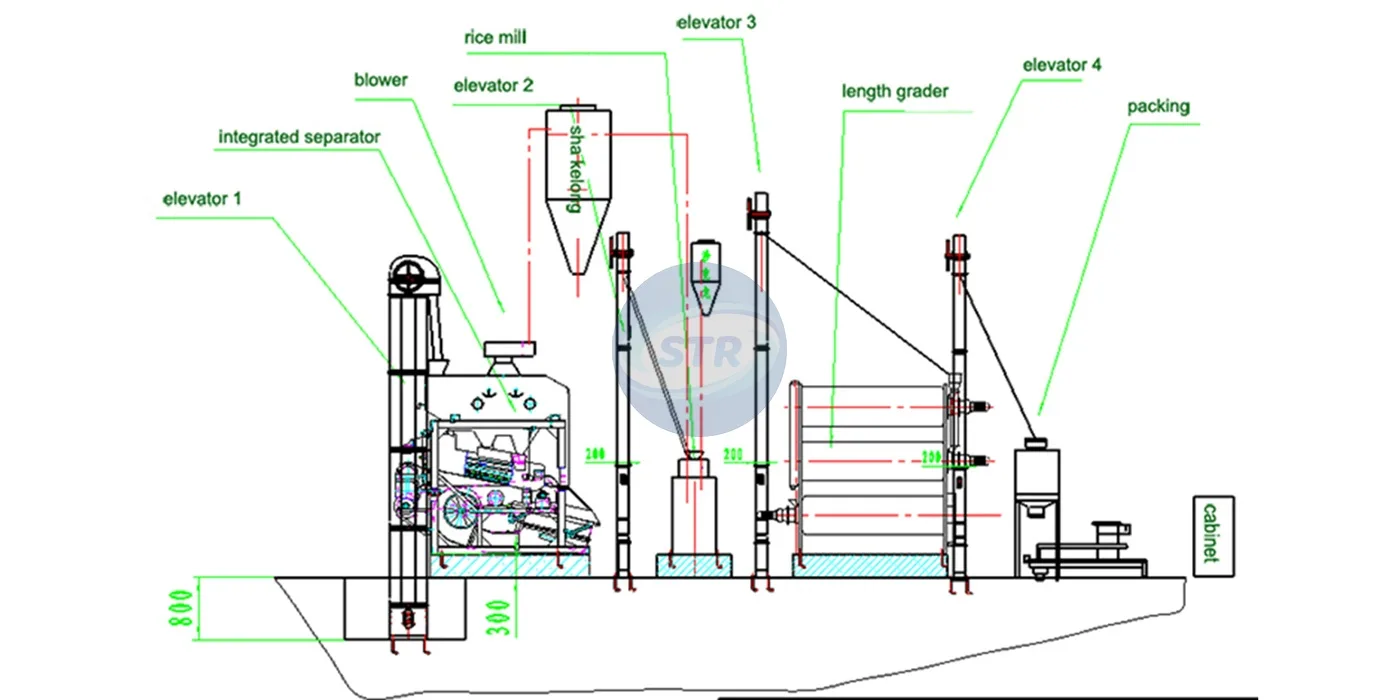

| Core machines | Cleaner/de-stoner, LNT huller & whitener, SN whitener and rice grader | Builds a more complete compact rice milling workflow |
| Optional machines | Packing machine, mist polisher and color sorter | Used when higher appearance grade or bagged rice sales are required |
| Typical support | Bucket elevators, blower and power distribution cabinet | Matched by site layout and equipment height |
Compact Line Selection
How to Match a Compact Rice Milling Line
Start from daily output, workshop space and which process sections must be included in one compact layout.
Capacity & SpaceConfirm target daily output, available floor area and whether the line needs to stay compact for a small commercial workshop.
Included SectionsCheck whether cleaning, destoning, husking, separation, whitening, grading and weighing/packing are included or added separately.
Upgrade PlanDecide whether color sorting, water polishing, extra elevators or packing equipment will be added now or reserved for later expansion.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
Is this a household mini rice mill?
No. It is positioned as a compact commercial rice milling line.
What information is needed for selection?
Required output, paddy variety, workshop space and target finished rice quality.
Can color sorting or packing be added?
Yes, optional sections can be matched according to the project.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send us your required output, paddy variety and workshop space to configure a compact commercial rice milling line.
