Input Material
Mixed paddy and brown rice
Husking & Separation Equipment
MGCZ Gravity Paddy Separator
MGCZ Gravity Paddy Separator: Precision Brown Rice Separation. Engineered for commercial rice processors, this gravity separator uses specific gravity and surface friction differences to separate unhusked paddy from brown rice, supporting high milling efficiency before the whitening stage.

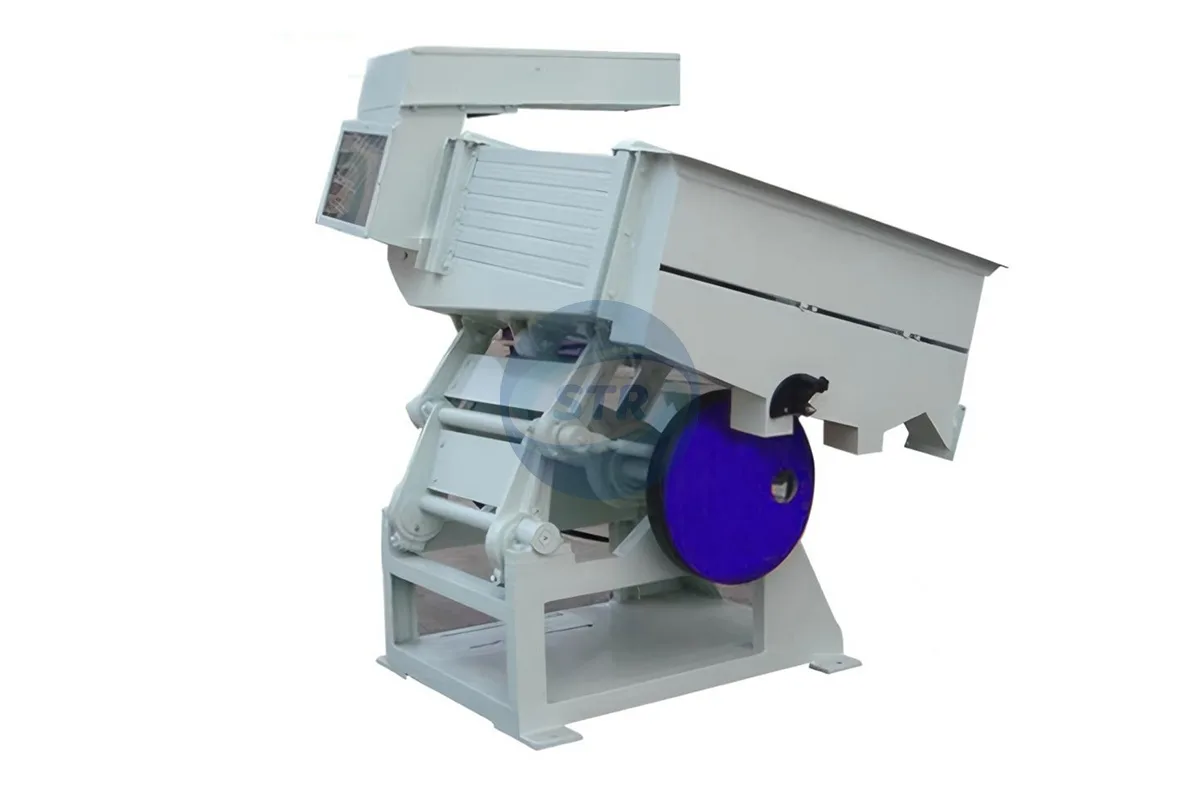

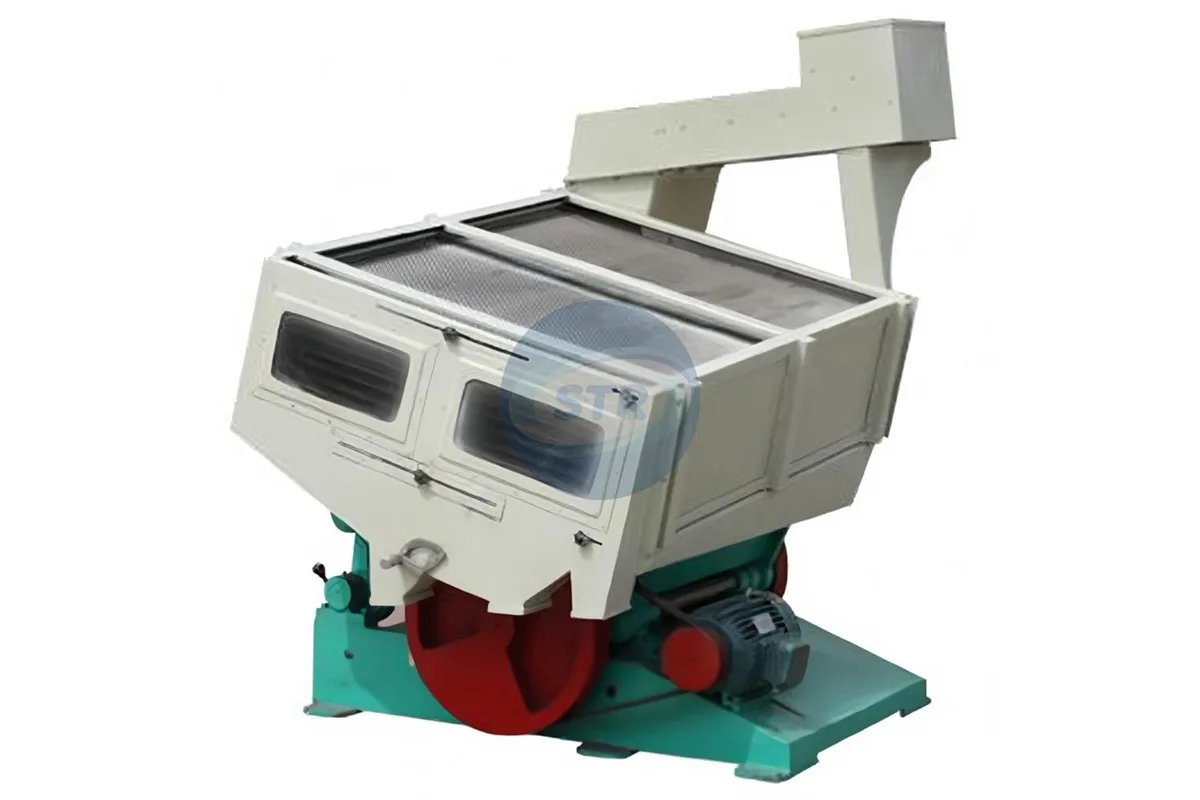

Product ViewMGCZ Gravity Paddy Separator
View Process →Product Application
Application in Husking and Paddy Separation
High-Volume Grain Conversion: Positioned after the husker, the MGCZ gravity paddy separator returns unhusked paddy to the hulling section and sends pure brown rice forward. It is essential for maintaining stable milling performance and helping to improve yield.
Core FunctionPaddy and brown rice separation after husking.
Buyer ValueSeparates unhusked paddy from brown rice so paddy can return to the husker and clean brown rice can continue to whitening.
Line IntegrationWorks after husking and before whitening. It separates brown rice from unhusked paddy, returns paddy for re-husking and sends brown rice forward to milling.
Process Result & Line Integration
How MGCZ Gravity Paddy Separator Fits in the Rice Milling Line
See the material entering the husking or separation section and the brown rice or return paddy produced after processing.
Processing Action
Gravity separation on vibrating trays
Output / Next Step
Brown rice to whitening and paddy returned to husking
Key Features
Stable Husking Before Rice Whitening
Removes husk and prepares brown rice for whitening while controlling broken rate and return-paddy flow.
Rubber Roll Husking
Uses rubber rolls and controlled feeding to remove husk from cleaned paddy.
Husk Aspiration
Separates husk through suction or aspiration so brown rice can move to the next stage.
Separation Accuracy
Paddy separators improve brown rice purity before whitening and reduce repeated milling problems.
Working Principle
How It Works in the Process
Use gravity separation and reciprocating sieve movement to separate brown rice from unhusked paddy.
Input
Cleaned paddy or a husked mixture enters the husking and separation section.
Husking / Separation
The machine removes husk or separates brown rice from unhusked paddy.
Return Flow
Unhusked paddy, husk or mixed material is discharged or returned as required.
Output
Brown rice moves forward to whitening or milling.
Technical Specifications
Technical Specifications
MGCZ gravity paddy separator separates unhusked paddy from brown rice and returns paddy to the husker for re-processing.
| Model | Capacity | Layers | Power | Weight / Dimension |
|---|---|---|---|---|
| MGCZ100×6 | 1.5–2.5 t/h | 6 | 1.1 kW | 660 kg; 1700×1350×1390 mm |
| MGCZ100×8 | 2.5–3 t/h | 8 | 1.1 kW | 720 kg; 1700×1350×1460 mm |
| MGCZ100×10 | 3–3.5 t/h | 10 | 1.5 kW | 760 kg; 1760×1350×1620 mm |
| MGCZ100×16 | 4.5–5.5 t/h | 16 | 1.5 kW | 940 kg; 1840×1480×1870 mm |
Husking & Separation Selection
How to Choose Paddy Husking and Separation Equipment
Select according to paddy flow, rubber roller size, husking rate, brown rice quality and the return-paddy separation requirement.
Husking CapacityMatch the husker size to the upstream cleaner and the downstream paddy separator or rice whitener.
Brown Rice QualitySelect feeding, rubber roller and aspiration configuration to reduce broken rice and separate husk effectively.
Return Paddy ControlUse a paddy separator when the line must separate brown rice from unhusked paddy before whitening.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
What is the difference between husker and separator?
The husker removes husk; the separator separates brown rice from unhusked paddy.
Which models are suitable?
Selection depends on capacity, paddy type and full line configuration.
Are rubber rollers spare parts?
Rubber rollers are consumable parts for huskers and can be listed separately.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send us your paddy type, capacity and existing line layout to choose the right husker or separator.
