Input Material
Raw paddy with impurities
Cleaning & De-stoning Equipment

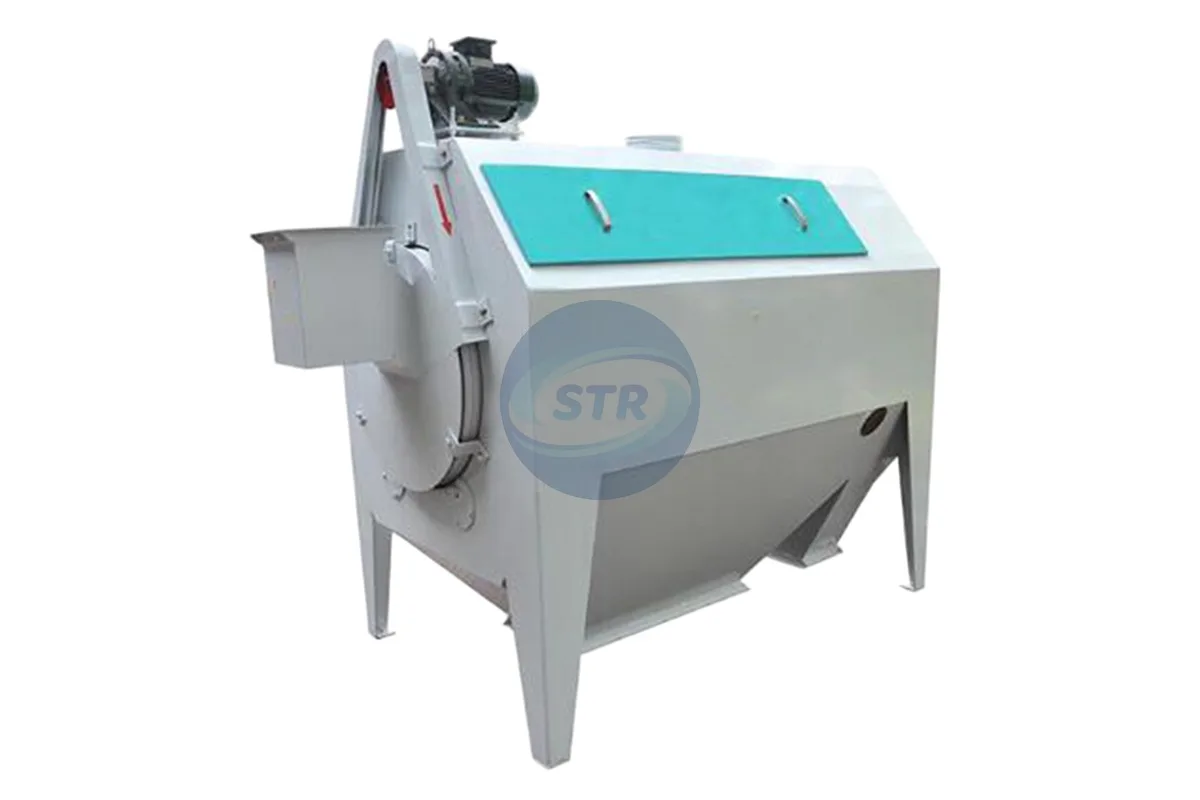

SCY Cylinder Pre-Cleaner
SCY Cylinder Pre-Cleaner: Essential Pre-Cleaning. Protect your milling investment. This robust cleaning machine effectively separates large impurities from raw grain, ensuring stable downstream processing for commercial rice mills.
Product ViewSCY Cylinder Pre-Cleaner
View Process →Product Application
Application in Paddy Cleaning and Destoning
This SCY cylinder pre-cleaner is used to remove large foreign materials such as straw, rope, paper, clods and other oversized impurities from raw paddy or grain. It protects downstream cleaning and milling equipment by handling rough pre-cleaning at the first stage.
Core FunctionRough pre-cleaning of raw paddy or grain to remove oversized impurities before fine cleaning and milling.
Buyer ValueProtects downstream machines from straw, rope, clods and large foreign materials, helping improve feeding stability and reduce equipment wear.
Line IntegrationPlaced in the front-end cleaning section before husking, where it removes impurities, stones or dust so downstream huskers, separators and whiteners can work more steadily.
Process Result & Line Integration
How SCY Cylinder Pre-Cleaner Fits in the Rice Milling Line
See the material before cleaning, the impurity-removal action and the cleaner paddy sent to the next process.
Processing Action
Screening, aspiration or preliminary cleaning
Output / Next Step
Cleaned paddy for de-stoning or husking
Key Features
Cleaner Input Before Husking and Milling
Removes impurities before paddy reaches the husker, protecting downstream equipment and improving process stability.
Targeted Impurity Removal
Selects the machine according to large impurities, light impurities, fine impurities, stones or mixed impurity conditions.
Protects Downstream Machines
Cleaner paddy helps reduce wear and blockage in huskers, whiteners, separators and elevators.
Matched to Capacity
Machine size, sieve area, air volume and cleaning stage are selected according to line capacity and raw grain condition.
Working Principle
How It Works in the Process
Raw material drops into the sieve cylinder from inlet through the feeding hopper.When the sieve cylinder rotates, material going through the sieve discharges from outlet.The big impurities are led out of the outlet under the inlet by means of the guide screw in the sieve cylinder.The guide screw not only helps discharge big impurities but also prevents the material to outflow with impurities. The cleaning brush is used to clean sieve cylinder in case the mesh gets blocked. The wind gate is connected with the air suction system so as to prevent dust from flying out.
Input
Raw or pre-cleaned paddy enters the cleaning or de-stoning section.
Separation
Screens, air flow, vibration or gravity separate impurities from useful grain.
Impurity Discharge
Dust, straw, stones or other unwanted materials are removed through separate outlets.
Output
Cleaner paddy moves to husking, storage or the next cleaning stage.
Technical Specifications
Technical Specifications
SCY cylinder pre-cleaner separates large foreign objects from paddy, corn, soybean, wheat and other grains before downstream processing.
| Model | Capacity | Power | Weight | Dimension |
|---|---|---|---|---|
| SCY63 | 3–5 t/h | 0.55 kW | 500 kg | 1525×820×1260 mm |
| SCY80 | 5–8 t/h | 0.75 kW | 620 kg | 1500×1000×1755 mm |
| SCY100 | 8–15 t/h | 0.75 kW | 800 kg | 1750×1150×2068 mm |
| SCY125 | 15–25 t/h | 2.2 kW | 950 kg | 2000×1500×2318 mm |
| SCY150 | 30–40 t/h | 3 kW | 1150 kg | 1968×1700×2550 mm |
Cleaning & Destoning Selection
How to Choose Cleaning or Destoning Equipment
Start from impurity type: large impurities, light dust, small impurities, stones or a combined cleaning-and-destoning requirement.
Impurity TypeUse pre-cleaners for straw, rope and large impurities; use vibrating or rotary cleaners for fine cleaning and grading.
Stone ContentChoose a destoner or combined cleaner-destoner when stones and sand must be removed before husking.
Air & Dust ControlCheck suction air, dust collection and workshop layout so light impurities can be removed cleanly.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
How do I choose between cleaner and destoner models?
Selection depends on impurity type, capacity and whether stone removal is required.
Where is this equipment installed?
Usually before husking to protect downstream machines.
Can the machine be matched with dust collection?
Yes, air suction or dust collection can be considered by model.
