Input Material
Raw paddy with impurities
Cleaning & De-stoning Equipment
TQLQ Paddy Cleaner and Destoner
TQLQ Paddy Cleaner and Destoner: Combined Efficiency. This integrated unit removes large impurities and stones in one compact frame. It is an ideal solution for small-to-medium commercial rice processors seeking reliable pre-cleaning and a smaller factory footprint.

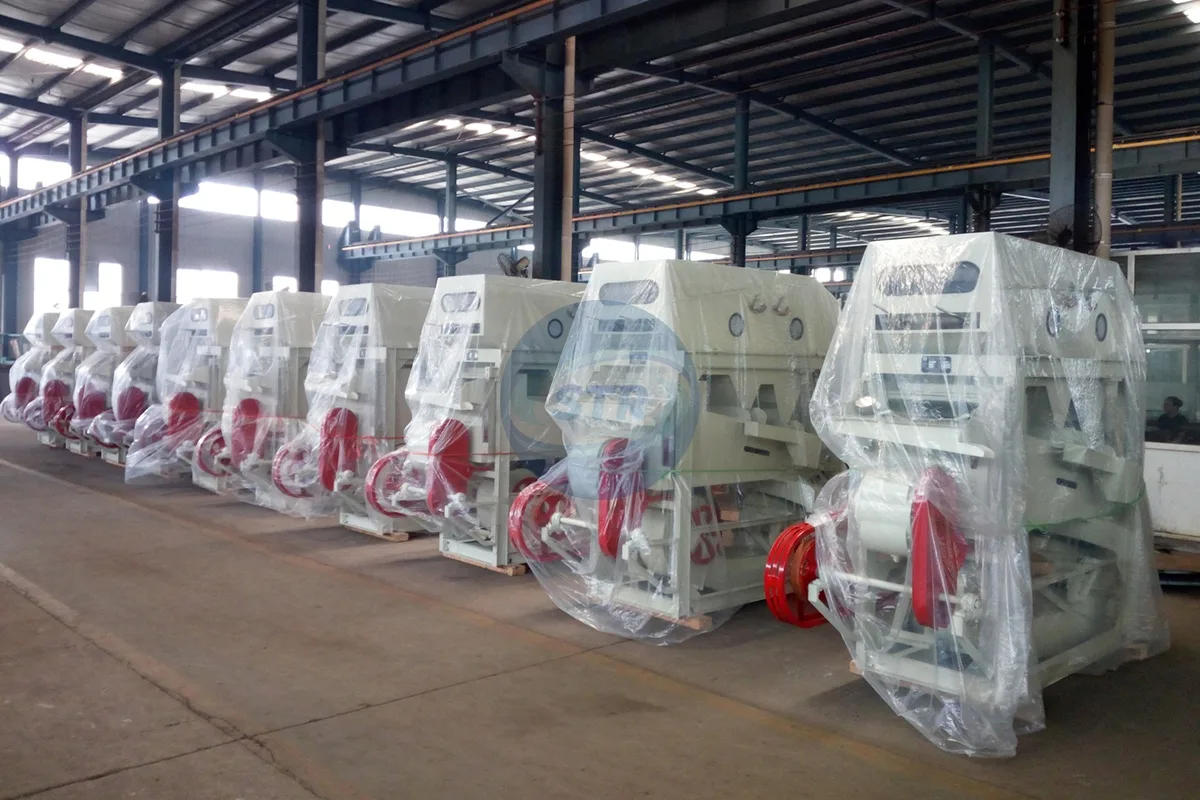

Product ViewTQLQ Combined Cleaner & Destoner
View Process →Product Application
Application in Paddy Cleaning and Destoning
This TQLQ paddy cleaner and destoner is used to remove large, small, light and heavy impurities from paddy, including straw, leaves, sand, earth and stones. It combines cleaning and stone-removing functions to prepare cleaner paddy for the husking section.
Core FunctionCombined paddy cleaning and stone-removing before the husking section.
Buyer ValueRemoves impurities and heavy particles in a compact setup, protecting rubber rollers and reducing quality problems caused by stones or sand.
Line IntegrationPlaced in the front-end cleaning section before husking, where it removes impurities, stones or dust so downstream huskers, separators and whiteners can work more steadily.
Process Result & Line Integration
How TQLQ Paddy Cleaner and Destoner Fits in the Rice Milling Line
See the material before cleaning, the impurity-removal action and the cleaner paddy sent to the next process.
Processing Action
Screening, aspiration or preliminary cleaning
Output / Next Step
Cleaned paddy for de-stoning or husking
Key Features
Cleaner Input Before Husking and Milling
Removes impurities before paddy reaches the husker, protecting downstream equipment and improving process stability.
Targeted Impurity Removal
Selects the machine according to large impurities, light impurities, fine impurities, stones or mixed impurity conditions.
Protects Downstream Machines
Cleaner paddy helps reduce wear and blockage in huskers, whiteners, separators and elevators.
Matched to Capacity
Machine size, sieve area, air volume and cleaning stage are selected according to line capacity and raw grain condition.

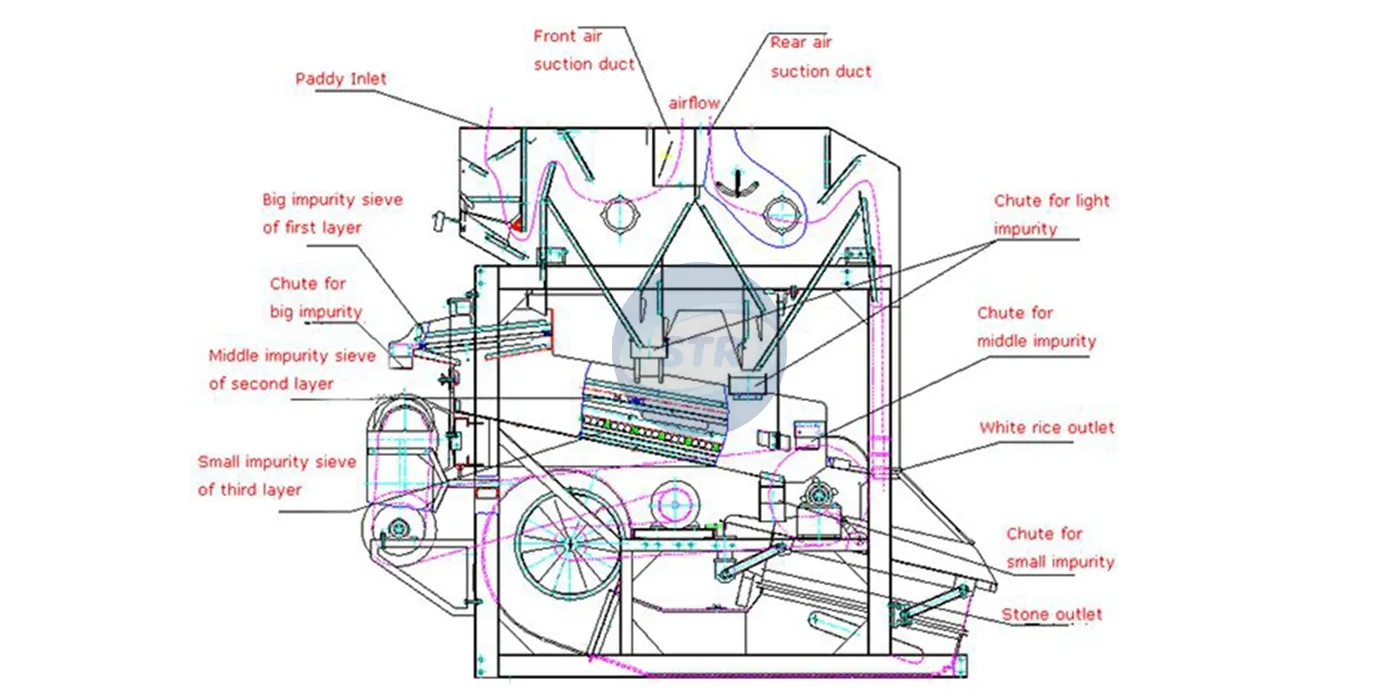

Working Principle
How It Works in the Process
Use screening, rotary/vibratory movement and optional air suction to separate large, small and light impurities.
Input
Raw or pre-cleaned paddy enters the cleaning or de-stoning section.
Separation
Screens, air flow, vibration or gravity separate impurities from useful grain.
Impurity Discharge
Dust, straw, stones or other unwanted materials are removed through separate outlets.
Output
Cleaner paddy moves to husking, storage or the next cleaning stage.
Technical Specifications
Technical Specifications
TQLQ combines cleaning and de-stoning functions for paddy and other grains. The table lists common model options for preliminary selection.
| Model | Productivity | Power | Air Volume | Weight / Size |
|---|---|---|---|---|
| TQLQ46 | 1000–1500 kg/h | 1.5 kW | 2000–2500 m³/h | 320 kg; 1270×1240×2700 mm |
| TQLQ63 | 1700–2500 kg/h | 1.5 kW | 2800–3500 m³/h | 900 kg; 2650×1200×2300 mm |
| TQLQ100 | 3300–4500 kg/h | 2.2 kW | 4700–5500 m³/h | 1100 kg; 2650×1400×2320 mm |
Cleaning & Destoning Selection
How to Choose Cleaning or Destoning Equipment
Start from impurity type: large impurities, light dust, small impurities, stones or a combined cleaning-and-destoning requirement.
Impurity TypeUse pre-cleaners for straw, rope and large impurities; use vibrating or rotary cleaners for fine cleaning and grading.
Stone ContentChoose a destoner or combined cleaner-destoner when stones and sand must be removed before husking.
Air & Dust ControlCheck suction air, dust collection and workshop layout so light impurities can be removed cleanly.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
How do I choose between cleaner and destoner models?
Selection depends on impurity type, capacity and whether stone removal is required.
Where is this equipment installed?
Usually before husking to protect downstream machines.
Can the machine be matched with dust collection?
Yes, air suction or dust collection can be considered by model.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send us your raw material, impurity condition and required capacity to select the right cleaner or destoner.
