Input Material
Raw paddy with impurities
Cleaning & De-stoning Equipment
TQS Compact Cleaner and Destoner
TQS Compact Cleaner and Destoner: Space-Saving Pre-Cleaning. A versatile solution for compact commercial lines. It delivers effective cleaning and destoning with low power consumption, helping you balance investment and operational stability.

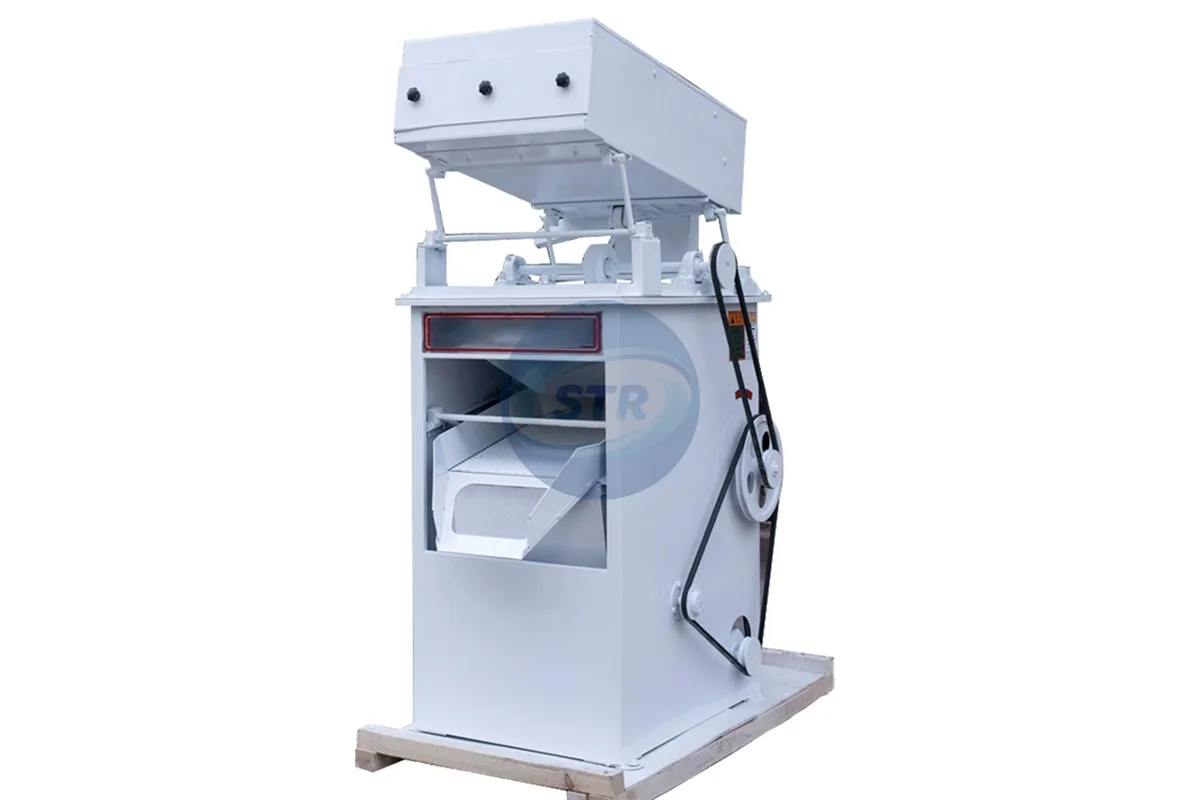

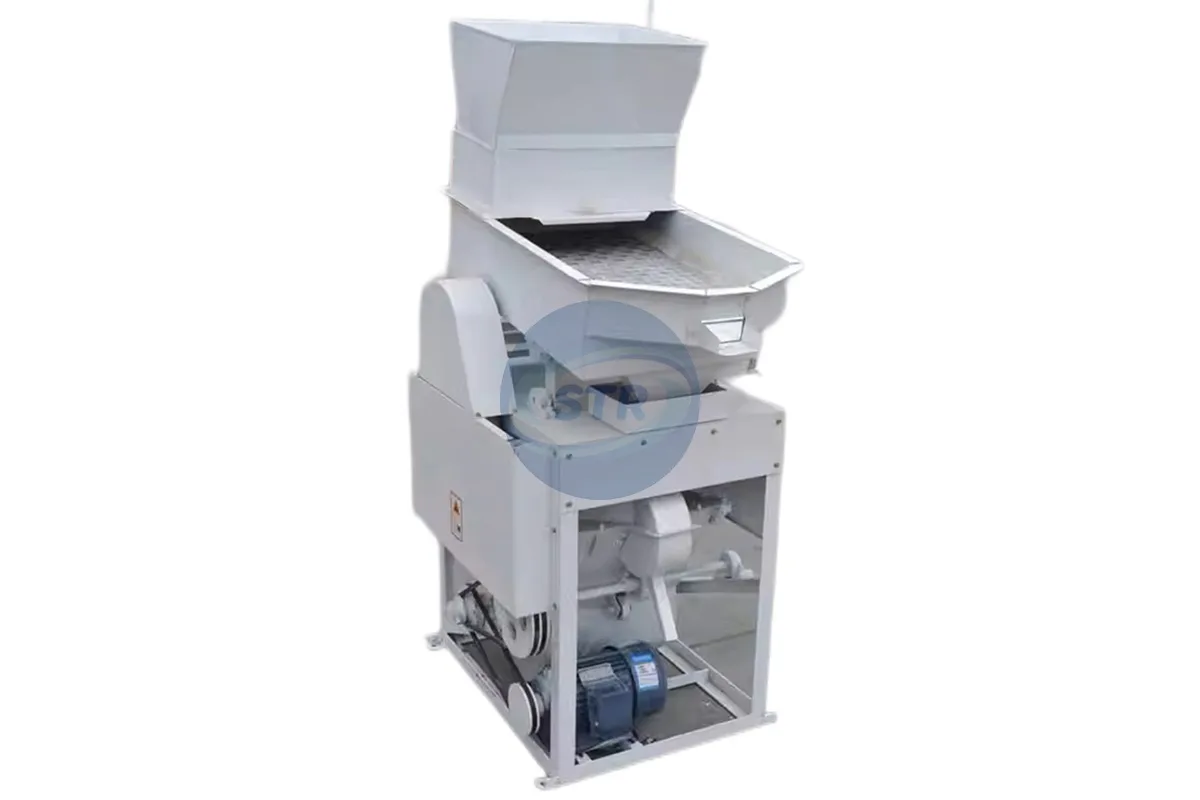

Product ViewTQS Compact Cleaner & Destoner
View Process →Product Application
Application in Paddy Cleaning and Destoning
This TQS compact cleaner and destoner is used to remove impurities and stones from paddy in one compact machine. It is suitable for small and medium commercial rice processing lines where cleaning and destoning need to be integrated before husking.
Core FunctionCombined paddy cleaning and stone-removing before the husking section.
Buyer ValueRemoves impurities and heavy particles in a compact setup, protecting rubber rollers and reducing quality problems caused by stones or sand.
Line IntegrationPlaced in the front-end cleaning section before husking, where it removes impurities, stones or dust so downstream huskers, separators and whiteners can work more steadily.
Process Result & Line Integration
How TQS Compact Cleaner and Destoner Fits in the Rice Milling Line
See the material before cleaning, the impurity-removal action and the cleaner paddy sent to the next process.
Processing Action
Screening, aspiration or preliminary cleaning
Output / Next Step
Cleaned paddy for de-stoning or husking
Key Features
Cleaner Input Before Husking and Milling
Removes impurities before paddy reaches the husker, protecting downstream equipment and improving process stability.
Targeted Impurity Removal
Selects the machine according to large impurities, light impurities, fine impurities, stones or mixed impurity conditions.
Protects Downstream Machines
Cleaner paddy helps reduce wear and blockage in huskers, whiteners, separators and elevators.
Matched to Capacity
Machine size, sieve area, air volume and cleaning stage are selected according to line capacity and raw grain condition.
Working Principle
How It Works in the Process
Use air flow, vibration and specific gravity difference to separate stones/heavy impurities from paddy or grain.
Input
Raw or pre-cleaned paddy enters the cleaning or de-stoning section.
Separation
Screens, air flow, vibration or gravity separate impurities from useful grain.
Impurity Discharge
Dust, straw, stones or other unwanted materials are removed through separate outlets.
Output
Cleaner paddy moves to husking, storage or the next cleaning stage.
Technical Specifications
Technical Specifications
TQS compact cleaner and de-stoner combines cleaning and stone removal in one machine for small commercial rice processing lines.
| Model | Capacity | Fan Power | Machine Weight | Packing Size |
|---|---|---|---|---|
| TQS-280 | 1 t/h | 0.37 kW | 95 kg | 880×540×960 mm |
| TQS-320 | 1–1.5 t/h | 0.37 kW | 110 kg | 1080×600×1200 mm |
| TQS-350 | 1.5–2 t/h | 0.75 kW | 150 kg | 1090×690×1260 mm |
| TQS-560 | 2–3 t/h | 1.5 kW | 320 kg | 1150×890×1590 mm |
Compact Cleaning & Destoning Selection
When to Use TQS Compact Cleaner and Destoner
Use this compact machine when small or medium lines need both cleaning and stone removal without installing a larger separate cleaning system.
Combined FunctionSuitable when the line needs one compact unit for impurity cleaning and stone removal before husking.
Small Commercial CapacityBest for small rice mills where floor space, power and installation simplicity matter.
Built-In FanUseful when a compact built-in air system is preferred instead of separate blower matching.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
How do I choose between cleaner and destoner models?
Selection depends on impurity type, capacity and whether stone removal is required.
Where is this equipment installed?
Usually before husking to protect downstream machines.
Can the machine be matched with dust collection?
Yes, air suction or dust collection can be considered by model.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send us your raw material, impurity condition and required capacity to select the right cleaner or destoner.
